The T2 built from nothing, in the order it goes together: floor, engine, wheels, the steel body, panels, then paint.

Step 1 of 6: Floor and rails 0%

Square, on purpose.

The Jetour T2 is a five-seat 4x4 drawn almost entirely in straight lines, and the 2025 Red Dot jury noticed. Underneath: a 2.0 turbo with 390 Nm, on-demand four-wheel drive and a cabin built around a 15.6-inch screen.

Red Dot Design Award 2025, product design

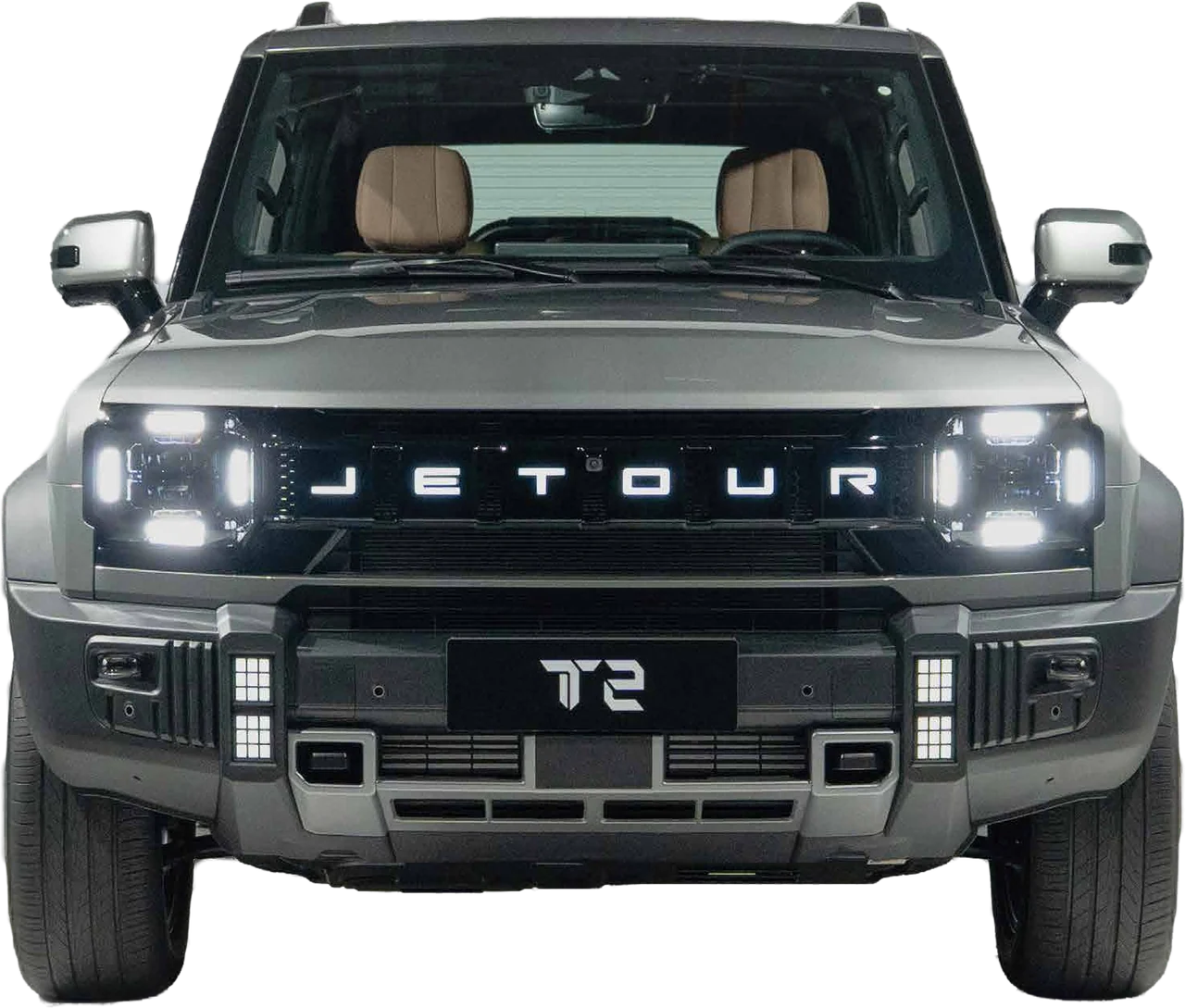

Jetour T2 in Matte Grey, front elevation, headlamps on
Front elevation. Overall width 2,006 mm, overall height 1,880 mm.

UAE specification, 2027 model year

Dimensions in millimetres

Walk round it.

Six camera stations round one car. Pick a station on the plan to see the T2 from where the camera stood, then move the detail circle over anything you want to look at closely.

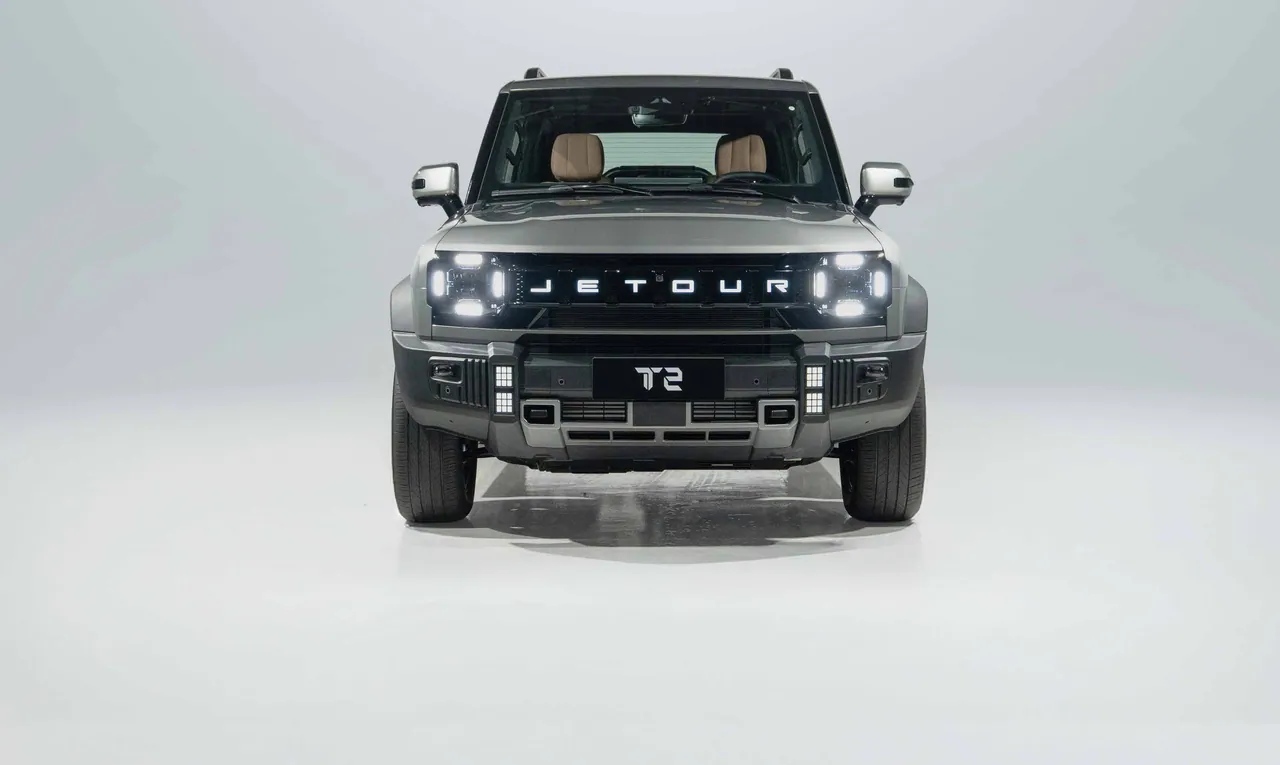

Jetour T2 from the front on the studio floor, lamps lit
Jetour T2 from the front left, low camera

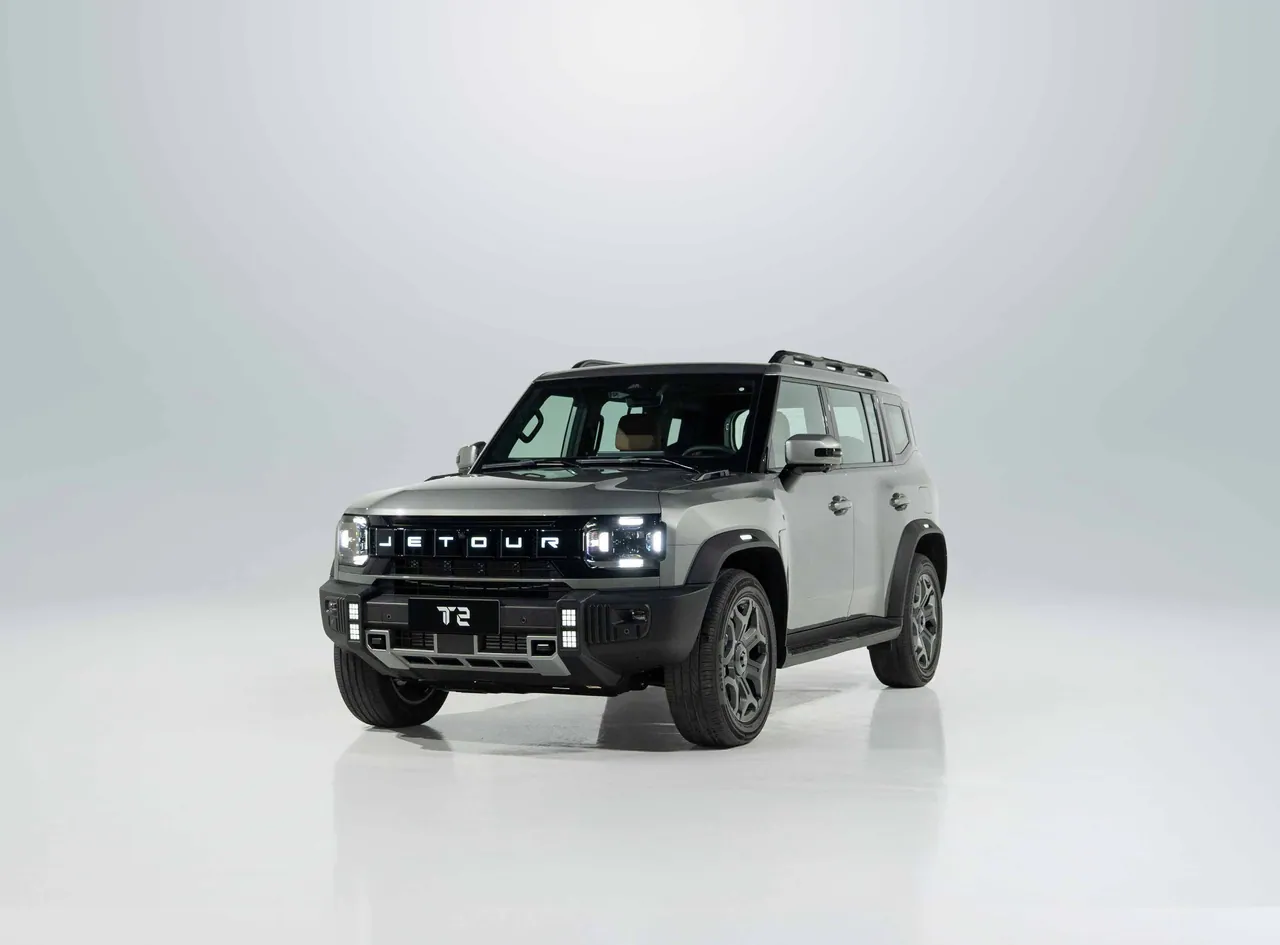

Jetour T2 from the front left

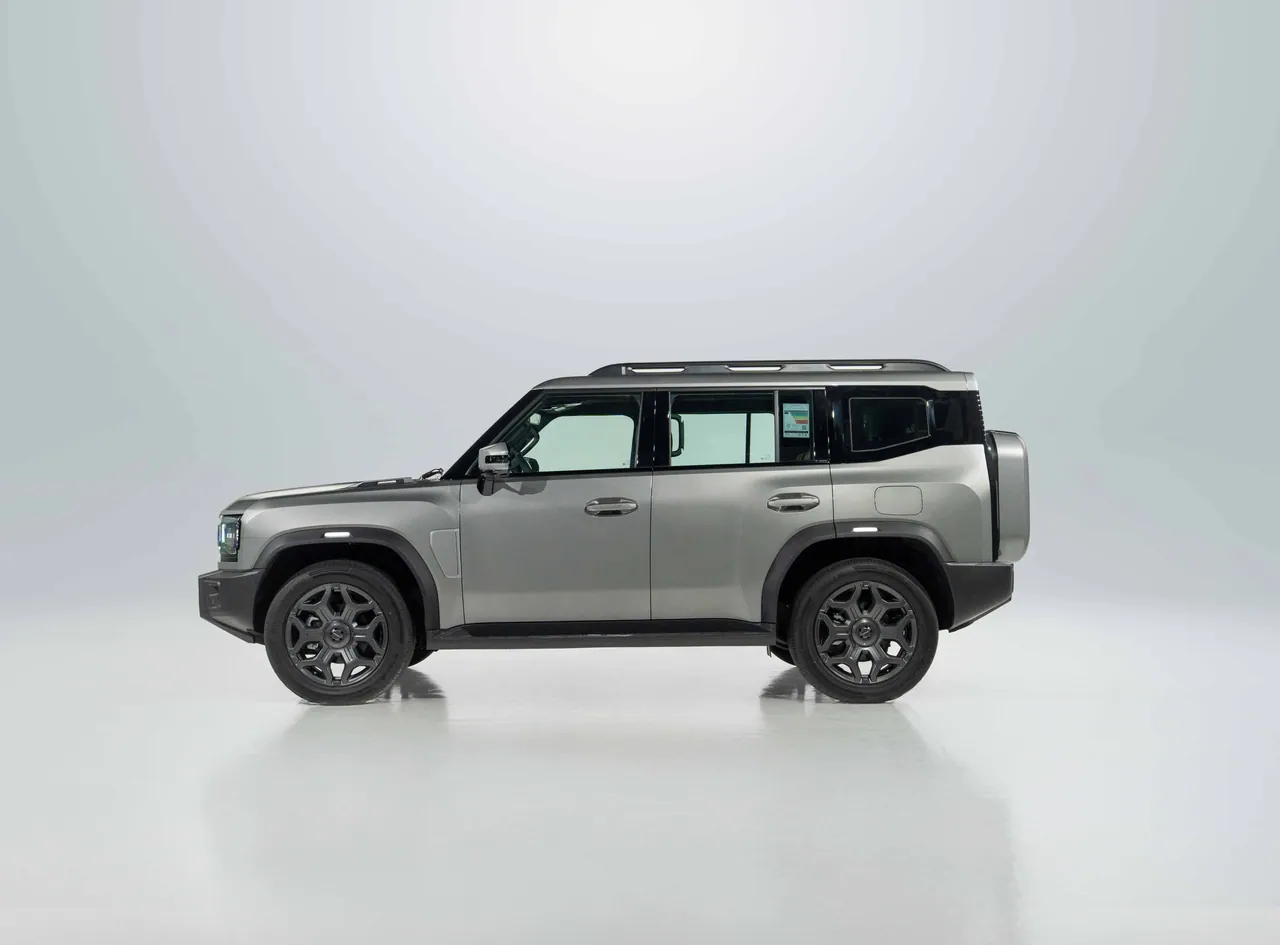

Jetour T2 left side on the studio floor
Jetour T2 from behind with the side-hinged tailgate open
Jetour T2 seen from above with every door and the tailgate open
S1FrontThe JETOUR word light between square LED headlamps, nine-grid lamps low in the bumper.

Twenty-eight degrees in. Thirty out.

Approach, ramp and departure angles of 28°, 18° and 30°, with 220 mm between the floor and the ground. On a wadi track, those numbers decide whether a ledge is a stop or a step.

  1. Dimensions in millimetres.
  2. Overall length includes the spare wheel cover; 4,612 without it.
  3. Ramp angle taken across the 2,800 wheelbase.

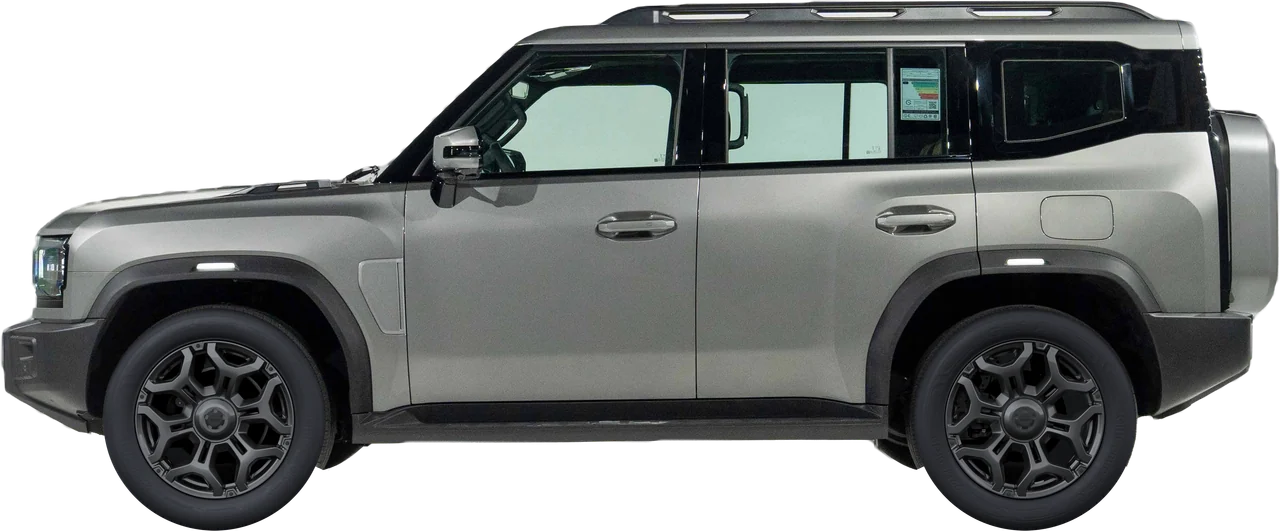

Jetour T2 in Matte Grey, side elevation
Side elevation. Overall length 4,785 mm, wheelbase 2,800 mm, height 1,880 mm, ground clearance 220 mm, approach angle 28°, ramp angle 18°, departure angle 30°.

Seven ways to read the ground.

Turn the dial as you would in the car. BorgWarner's on-demand four-wheel drive and an electronic rear limited-slip differential do the sorting; you pick the surface. Under the car the ground is cut away in section and drawn the way a borehole log draws it, with a detail of the tyre where it meets the ground; the recorder below traces what each wheel does.

Jetour T2 crossing the selected terrain
Normal For everyday roads. Balanced and quiet.

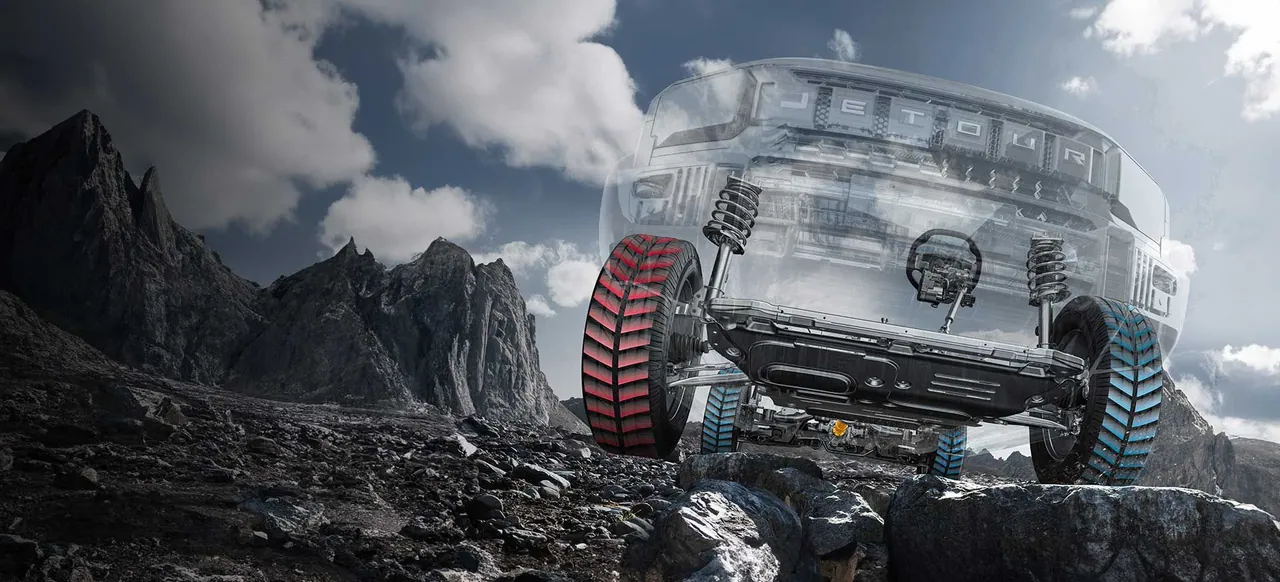

Transparent T2 on rocks with its four-wheel drive system and tyres shown inside
Section BorgWarner on-demand four-wheel drive, sending torque to the wheels that can use it.

Fitted for the way back

  • Crawl Control
  • Hill descent control
  • Hill start assist
  • Rear electronic limited-slip differential
  • Wading sensing
  • Transparent underbody view
  • Metal guard plate, front

Steel where it counts. Doors that do the work.

A monocoque in high-strength steel under flat, upright panels. The rear door swings wide on its side hinge and closes itself softly, the roof rails take what the 580-litre boot cannot, and the boot has power for the campsite.

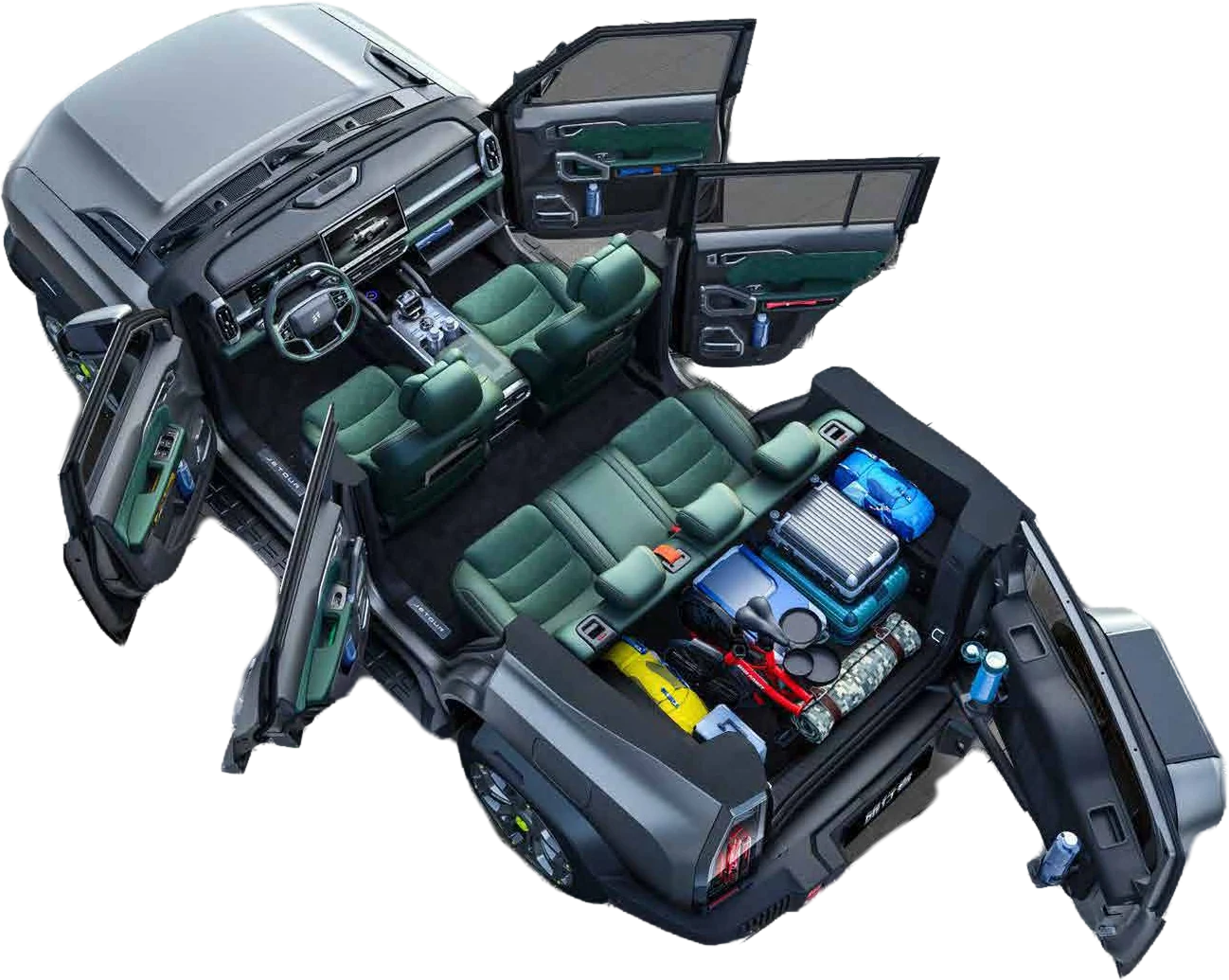

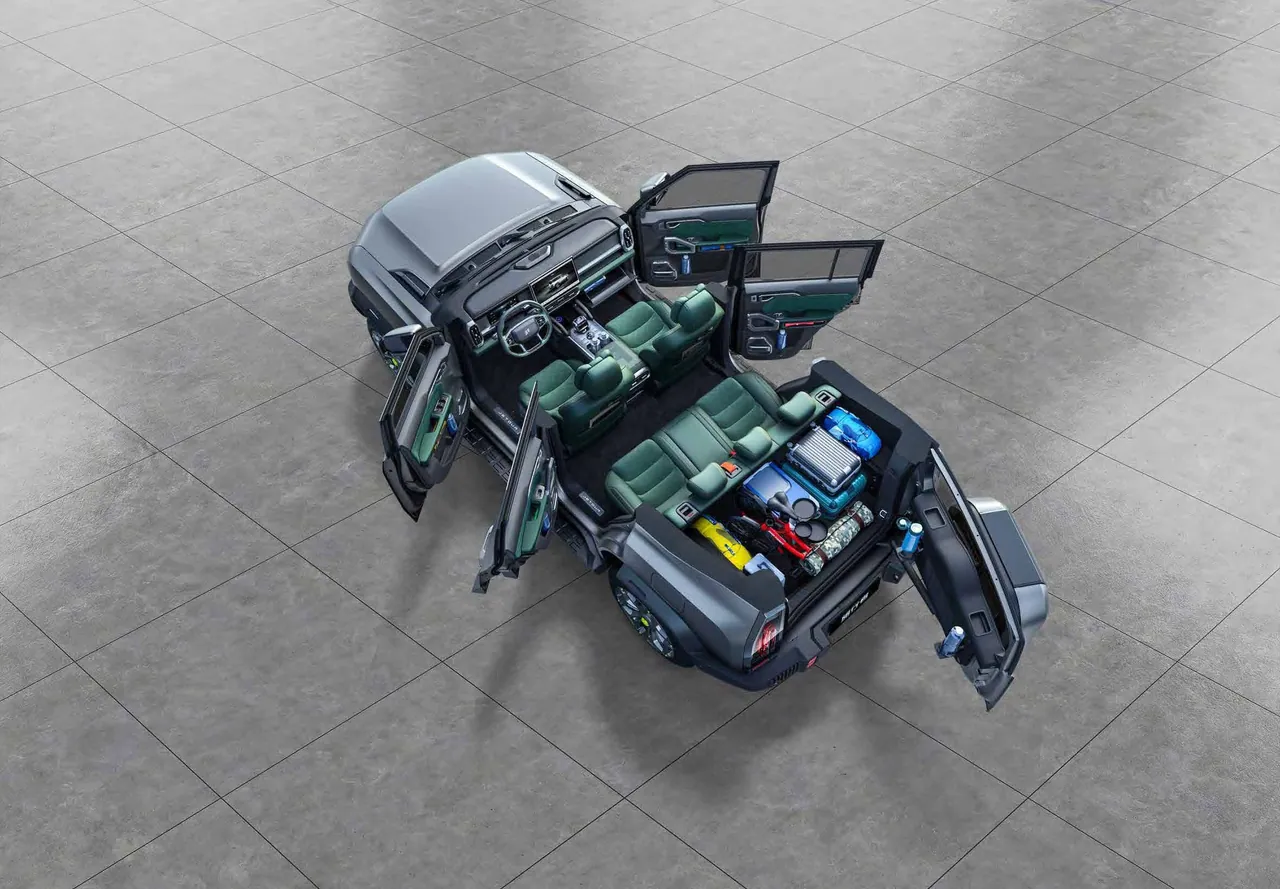

Jetour T2 seen from above with every door and the tailgate open
View from above with the roof cut away and every opening open. Not to scale.
Parts list
ItemDescription
1Magic electric door. Opens with little effort and closes itself with a quiet soft-close action.
2Expandable feature tailgate. More room at the back and easier reach into the storage compartment.
3Roof rails. For the boxes, boards and bikes the boot cannot take.
4High-strength steel body. Monocoque construction with bold, upright lines.
5Panoramic sunroof. Floods the cabin with daylight.
6Power in the boot. A 220 V socket and a 12 V, 180 W outlet.
7Underbody guards. Metal plate at the front, a guard under the fuel tank.

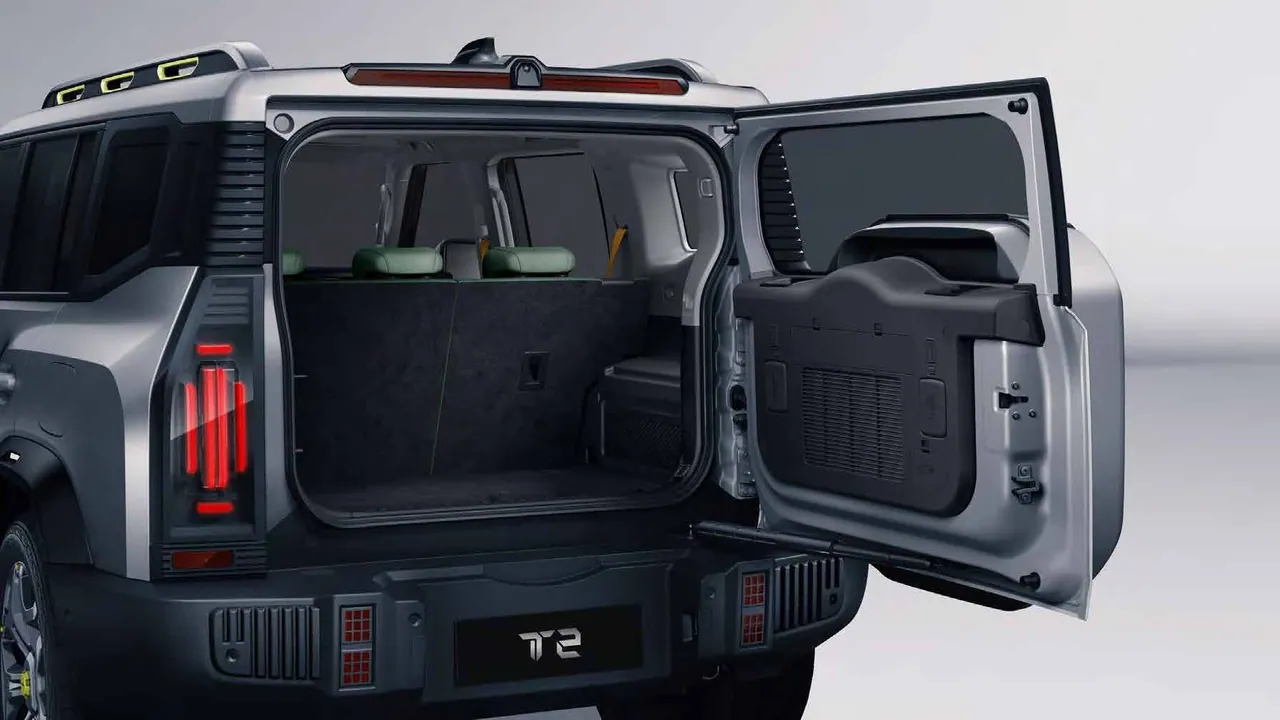

Side-hinged tailgate swung open, boot floor and folded rear seats
Detail A Side-hinged tailgate, 580 L boot.

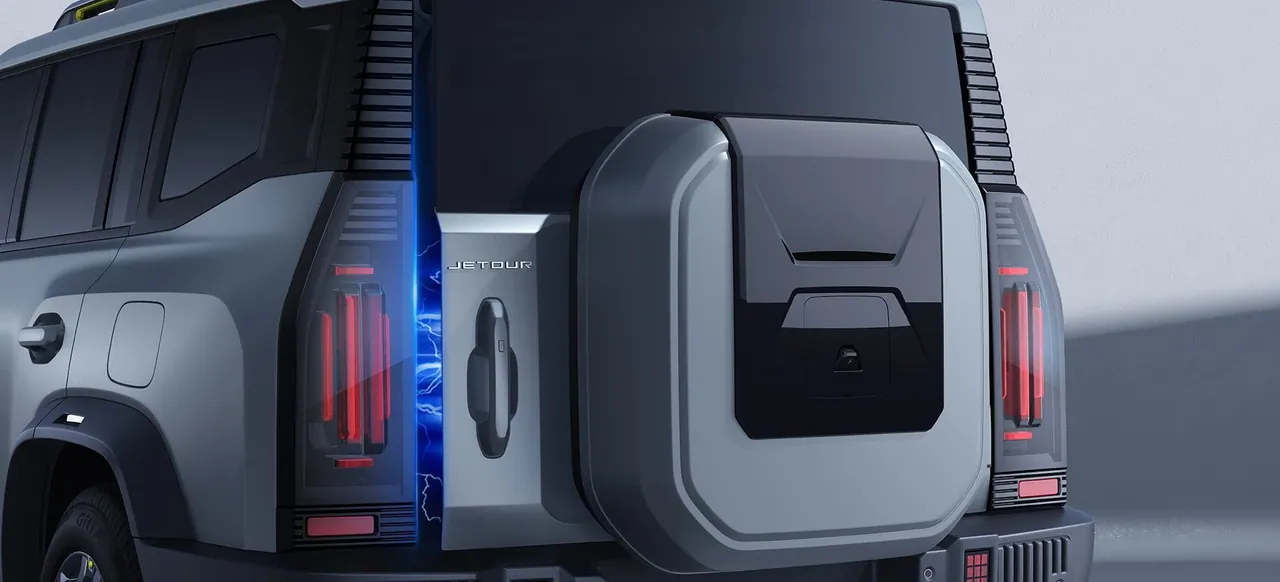

Rear corner of the T2 with the spare wheel cover and lit tail lamp
Detail B Rear door and spare wheel carrier.

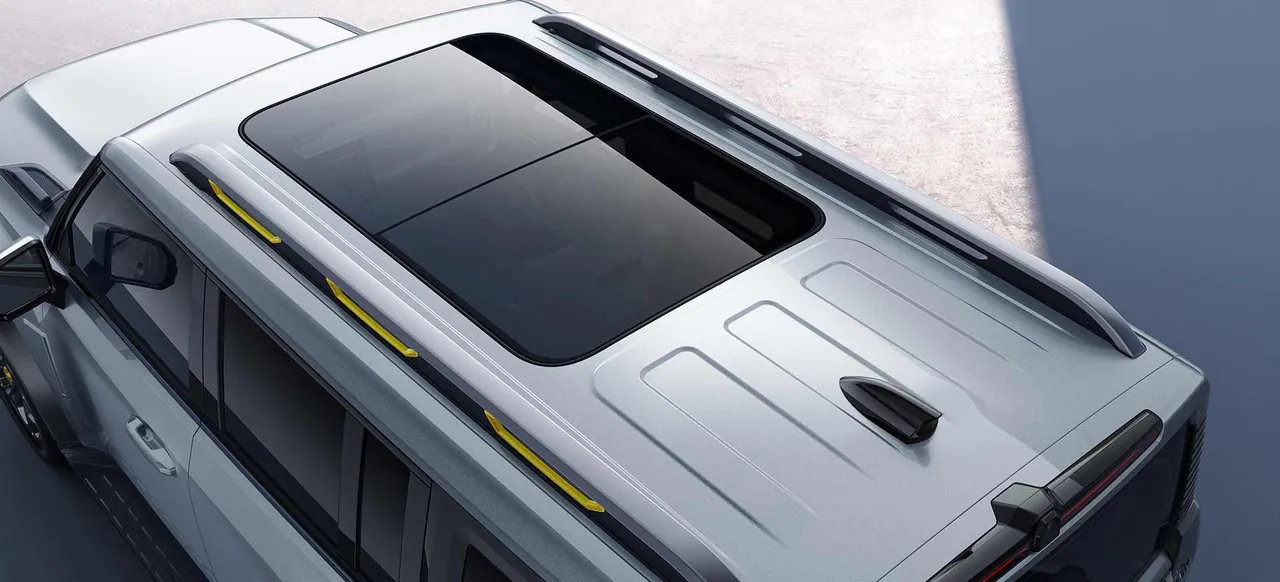

Roof rails seen from above, panoramic roof glass between them
Detail C Roof rails and panoramic roof.

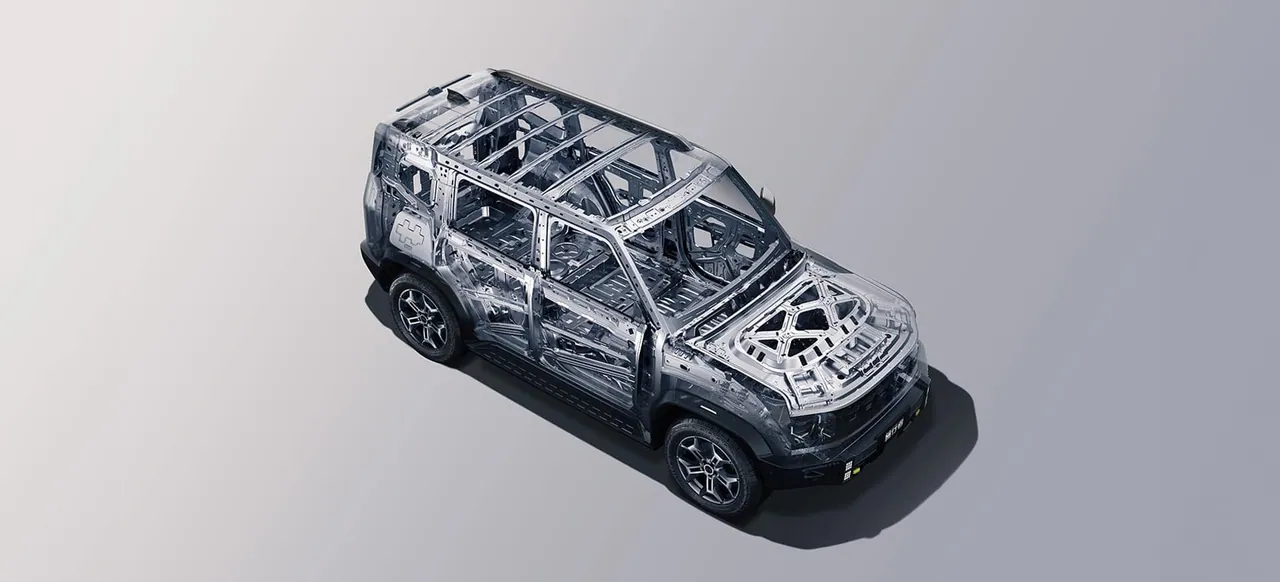

The T2's steel body structure shown in grey, wheels attached
Section D Body in white, high-strength steel.

Two litres, turbocharged. Full pull from 1,750 rpm.

Run the engine from idle to the red line: scroll, or drag the engine speed. Pulling force (torque) is the shove you feel when you press the pedal; power is how quickly the engine can keep delivering it.

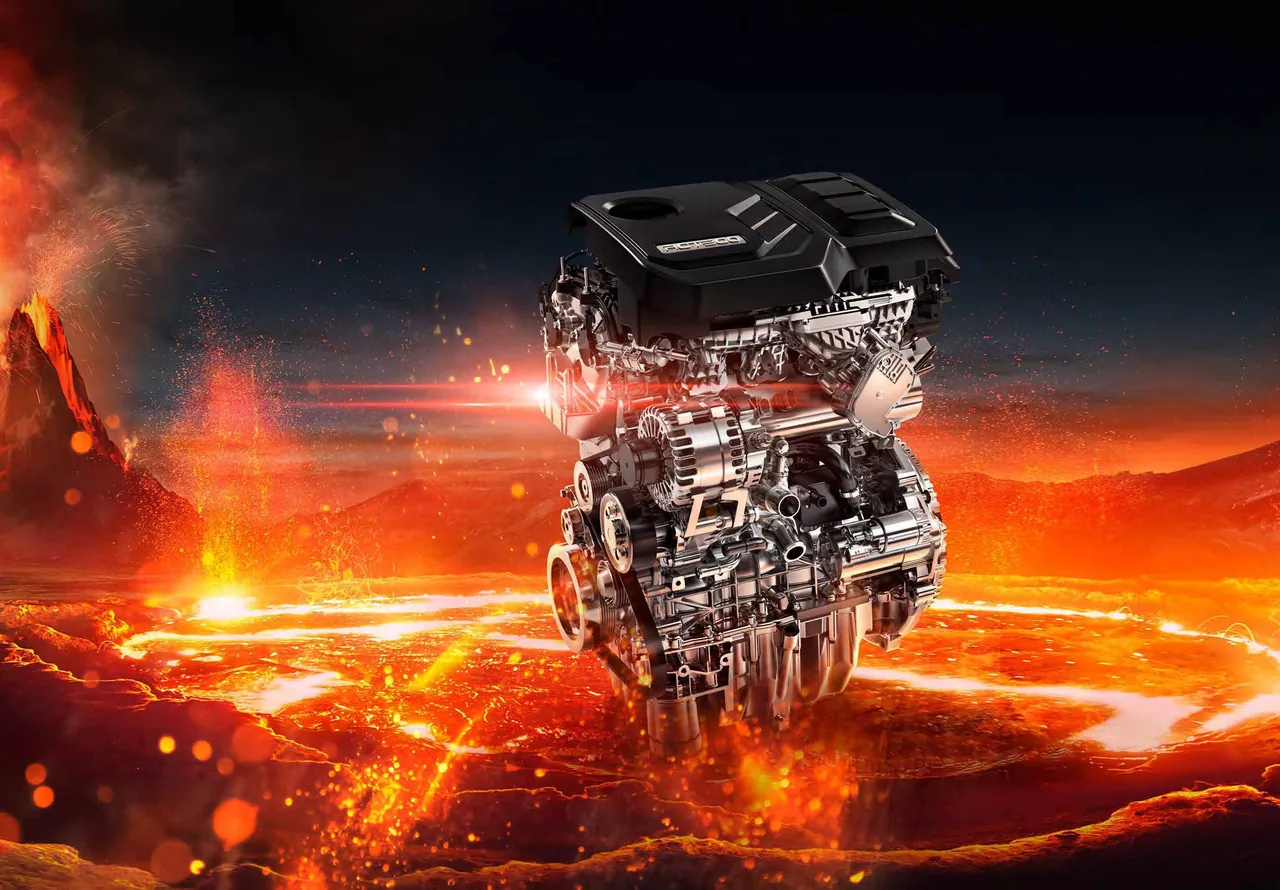

The T2's 2.0-litre turbocharged engine, glowing hotter as the revs rise

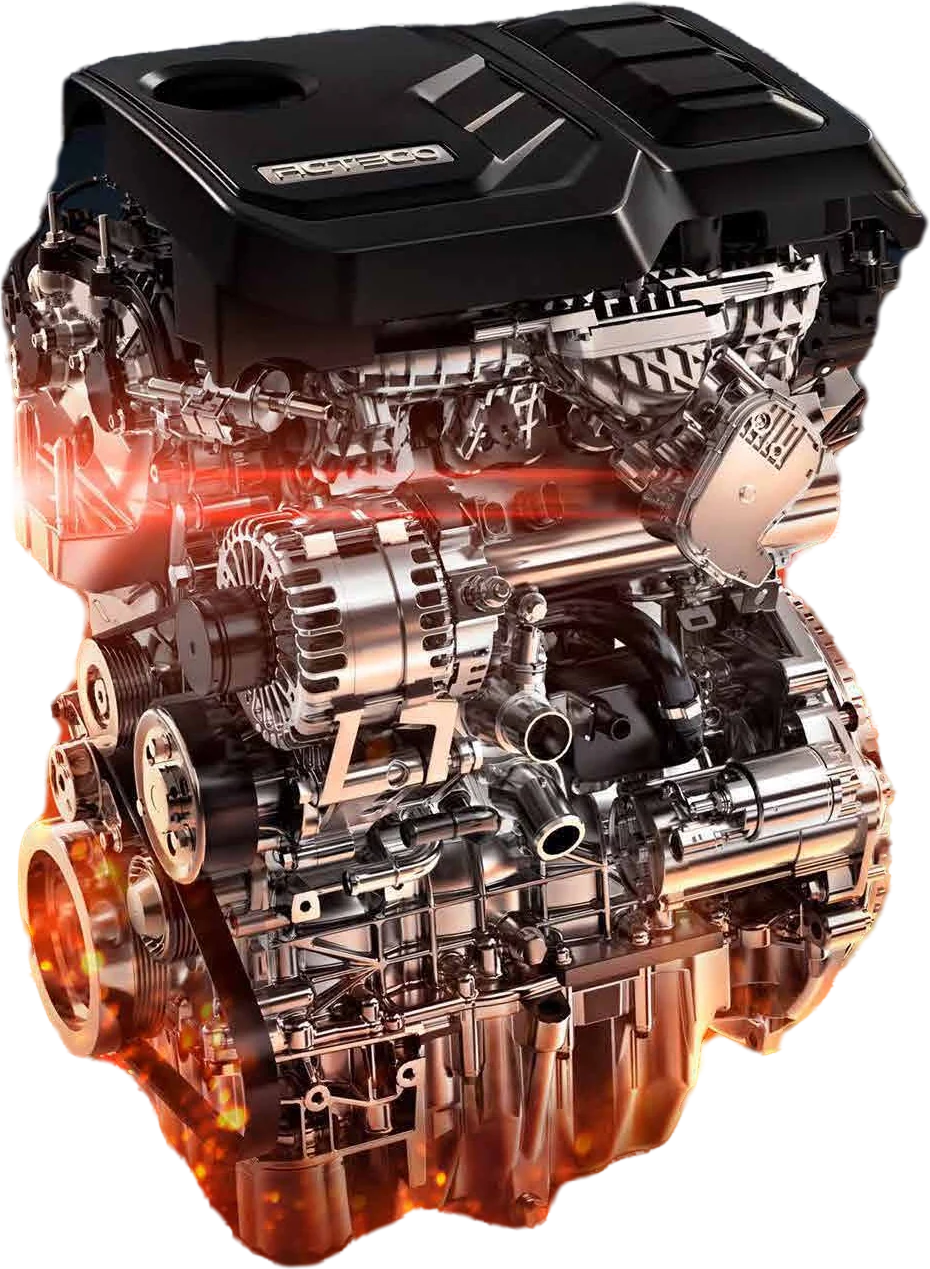

Section A-A Inside the four cylinders at this engine speed, slowed down to watch

Plate 6.1 The 2.0 turbo four. A small turbine, spun by the exhaust, forces extra air in, so two litres pull like a bigger engine.

800 rpm

Pulling force205 Nm
Power17 kW

Setting off Idle and pulling away. The turbo is still spinning up, so the push is gentle.

The curve is drawn through Jetour's published figures, 390 Nm from 1,750 to 4,000 rpm and 187 kW at 5,500 rpm; the shape between them is illustrative.
Powertrain schedule
Engine2.0-litre petrol, turbocharged, four cylinders
Most pulling force390 Nm, from 1,750 to 4,000 rpm
Most power187 kW (254 PS) at 5,500 rpm
Gearbox8-speed automatic
DriveFour-wheel drive when it is needed, BorgWarner
Top speed180 km/h
FuelPetrol, 95 octane, 70 L tank

Where the lines go.

Plates from the photographic record. The T2 is a light off-roader by design, which covers far more weekends than the term suggests: gravel, sand, wet tracks, mountain roads.

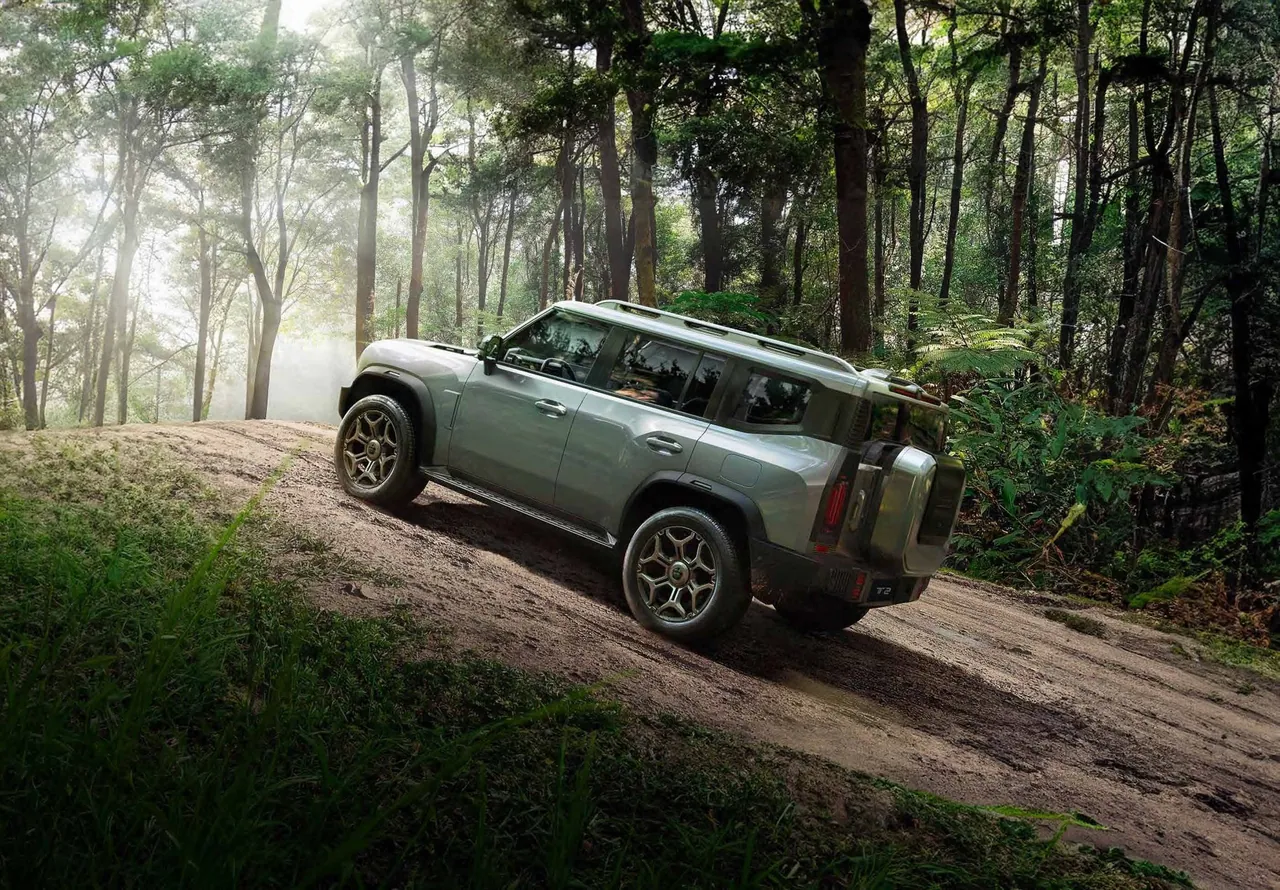

Grey T2 climbing a dirt track through a pine forest
6.1 Forest track, soft ground.
Two T2s, one grey and one orange, on a jungle trail in shafts of light
6.2 Jungle trail, morning haze.

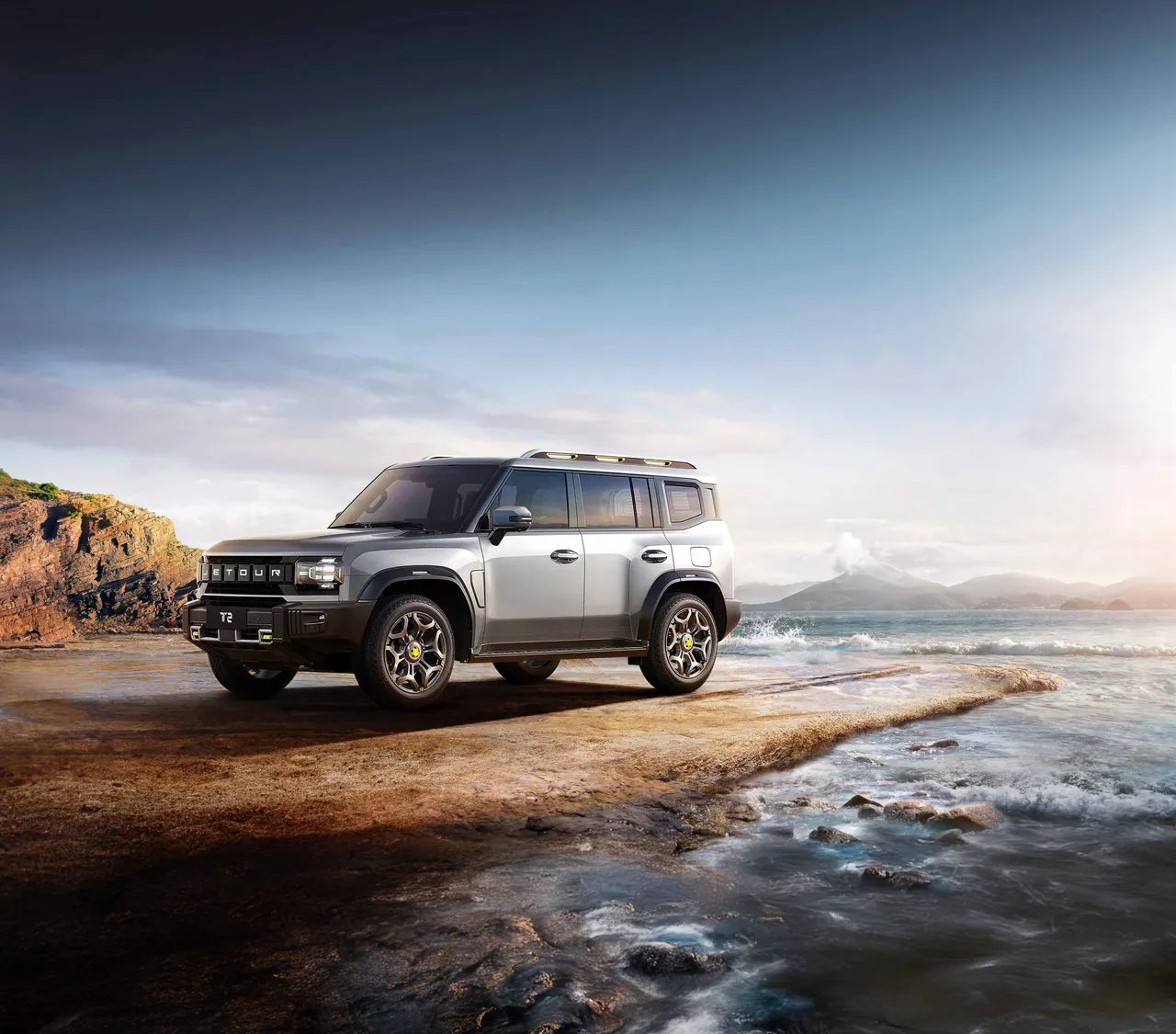

T2 on a rock shelf beside the sea under a bright sky
6.3 Rock shelf at the waterline.

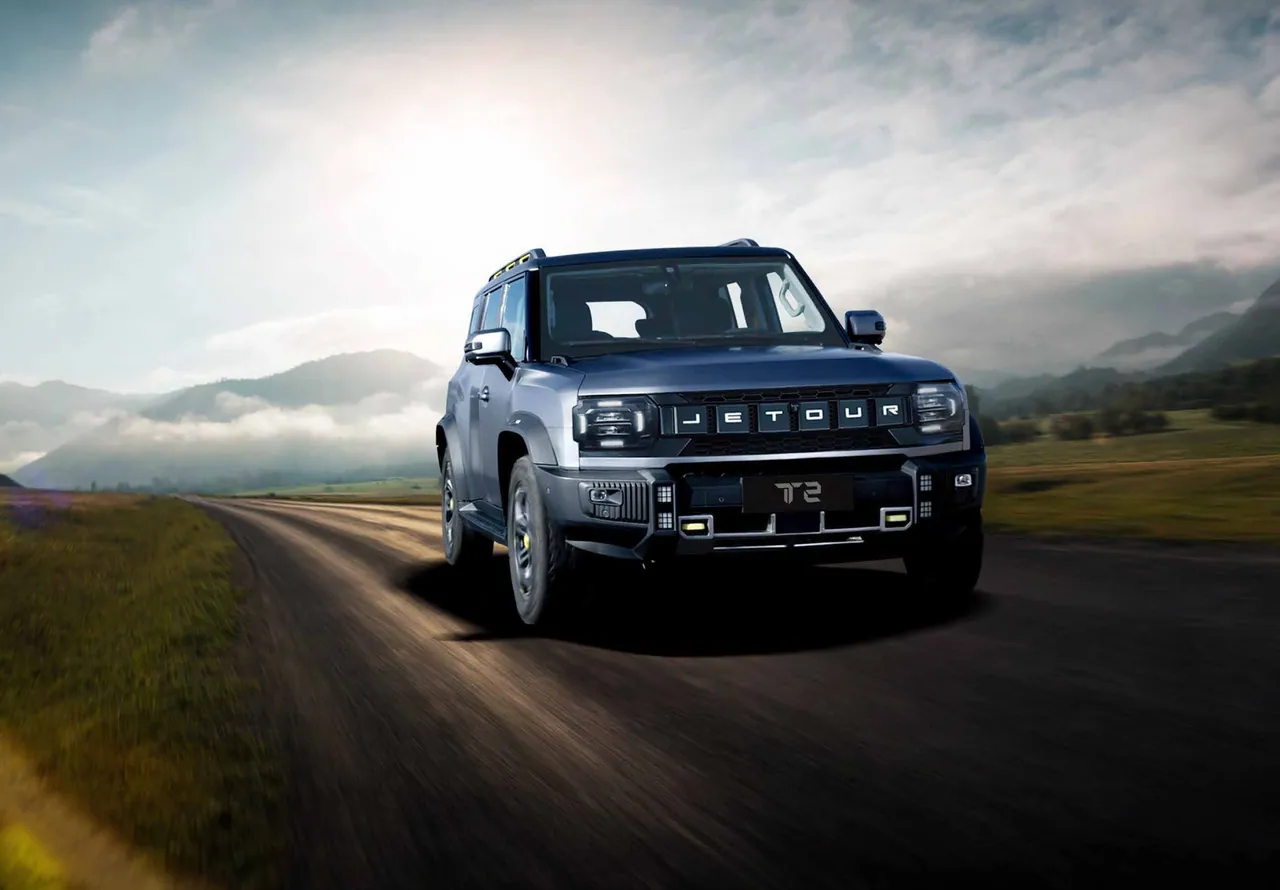

T2 in Misty Cyan on an open country road, mist on the hills
6.4 Open road, in Misty Cyan.

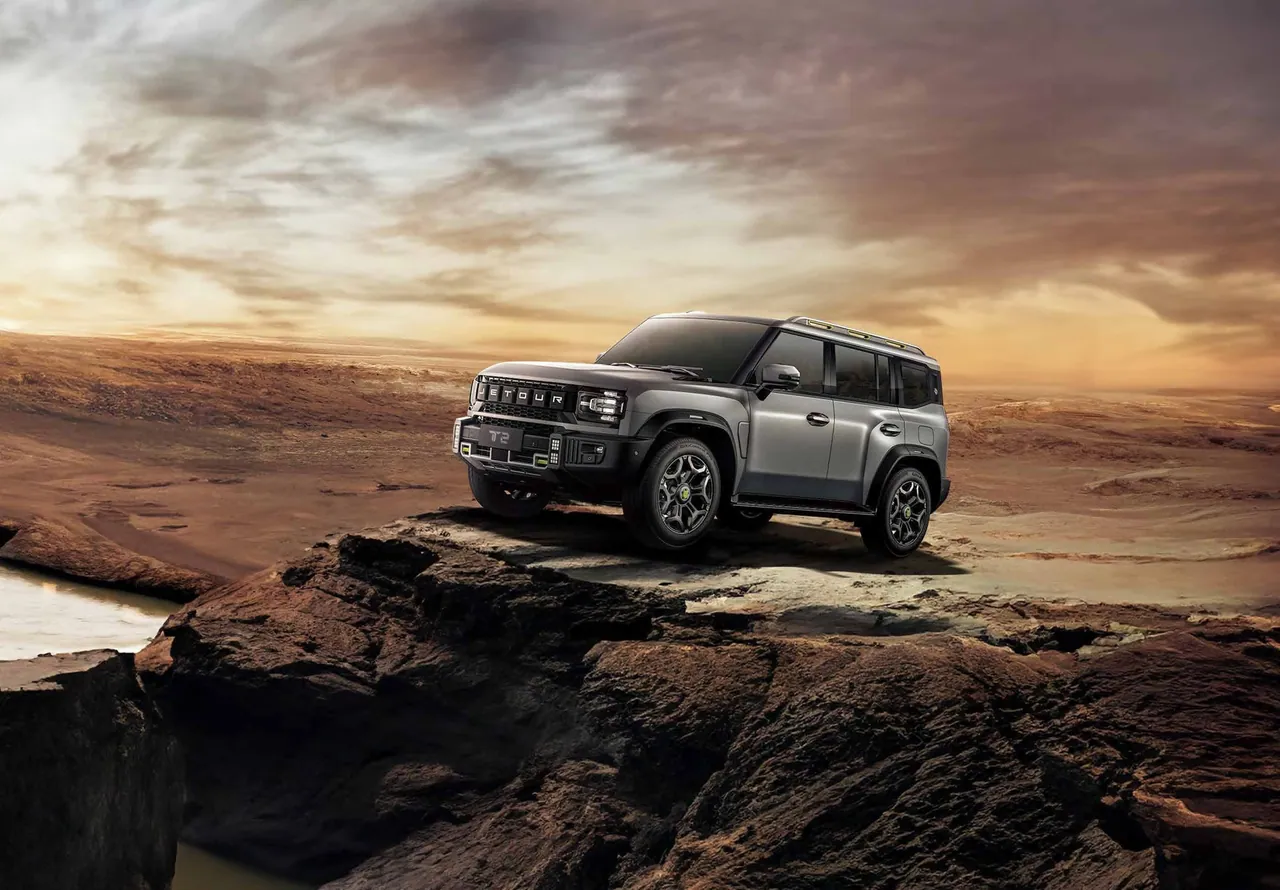

T2 on the edge of an escarpment as the sun goes down
6.5 Escarpment, last light.

It introduces itself in the dark.

Square LED headlamps with adaptive high beam, a JETOUR word light across the grille and nine-grid lamps low in the bumper. Switch them on one group at a time.

Jetour T2 front at night with its lamps lit
Lamp schedule
GroupLampSwitch

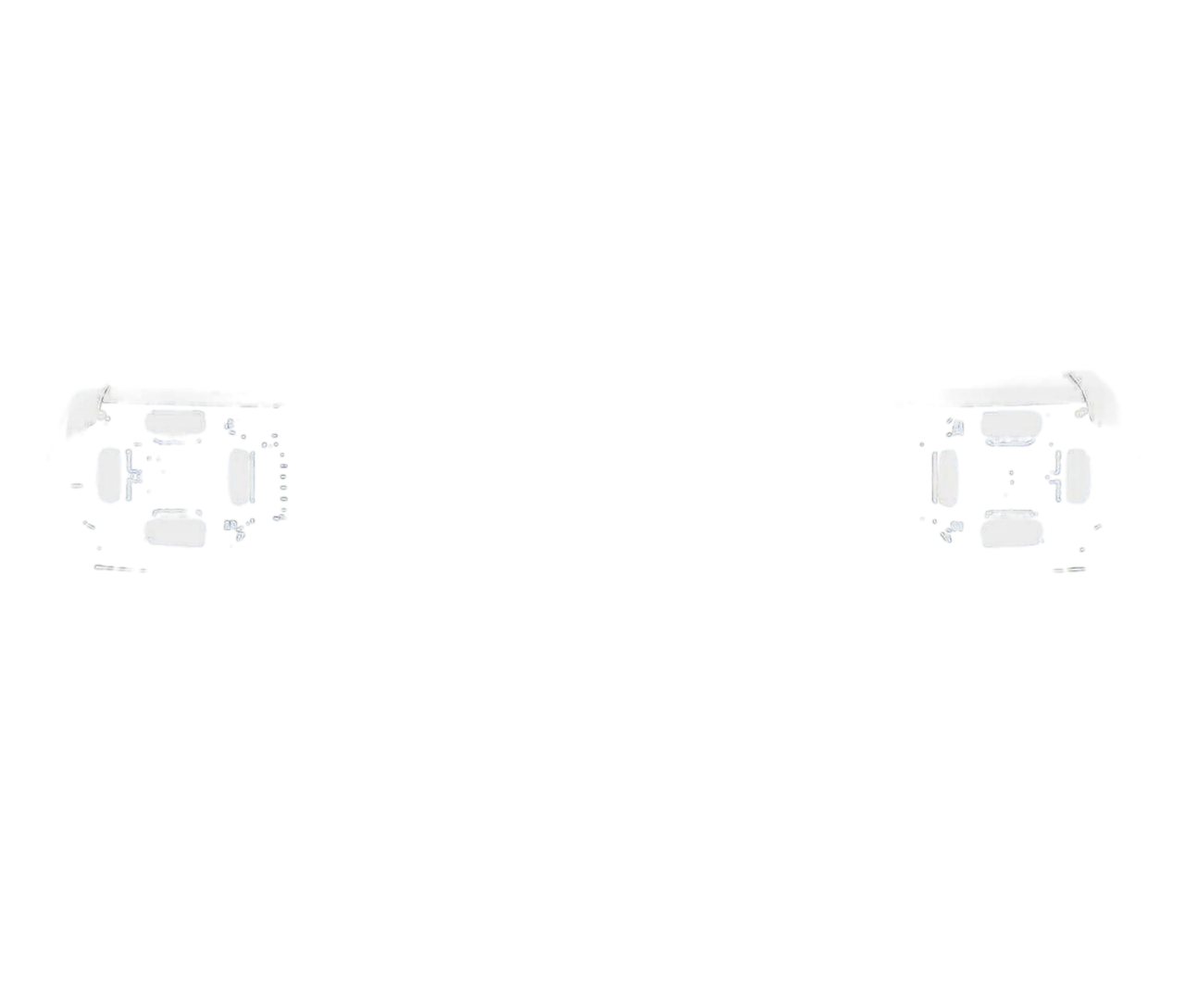

L1Headlamps. LED low and high beam, adaptive.

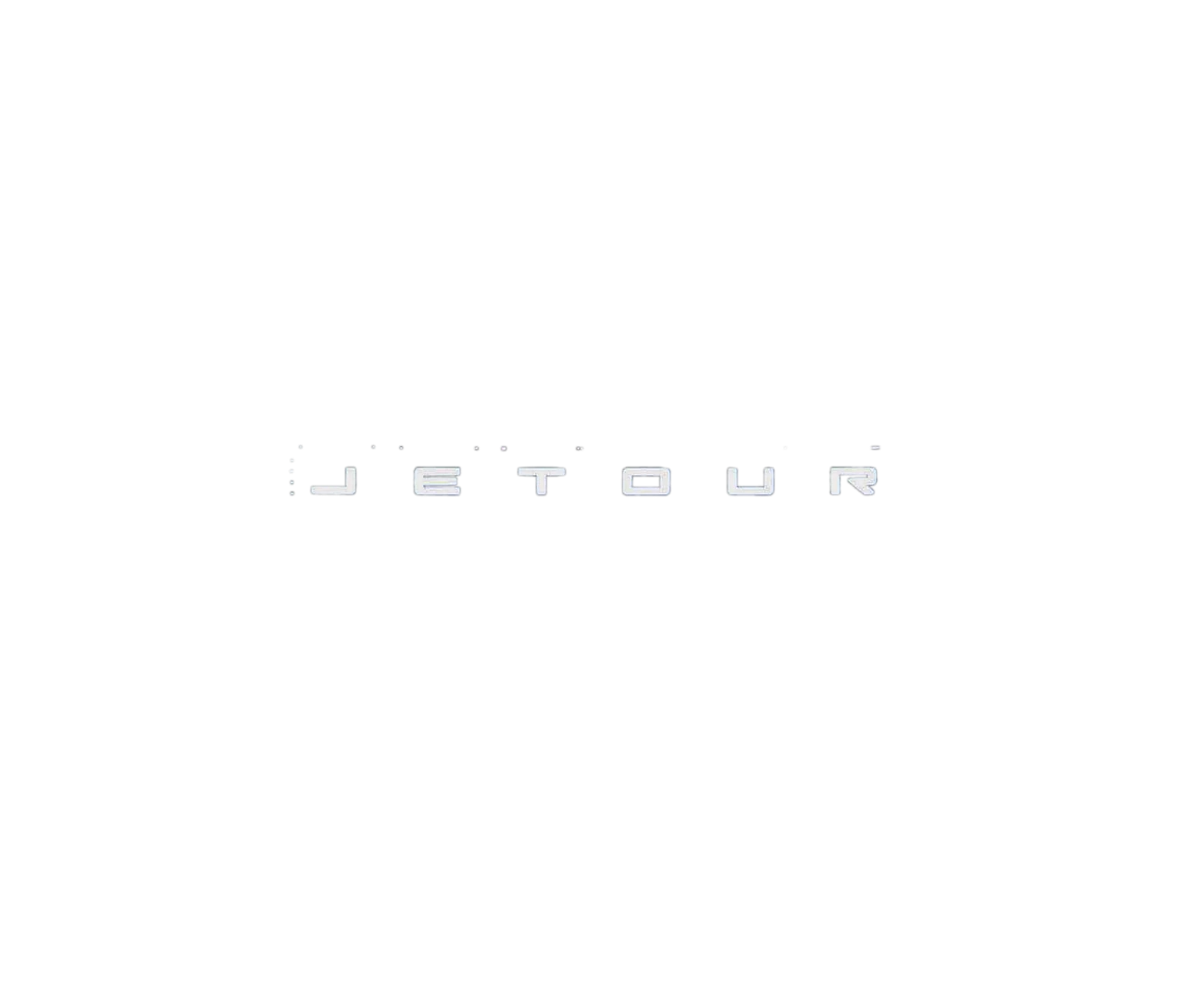

L2Word light. JETOUR, across the grille.

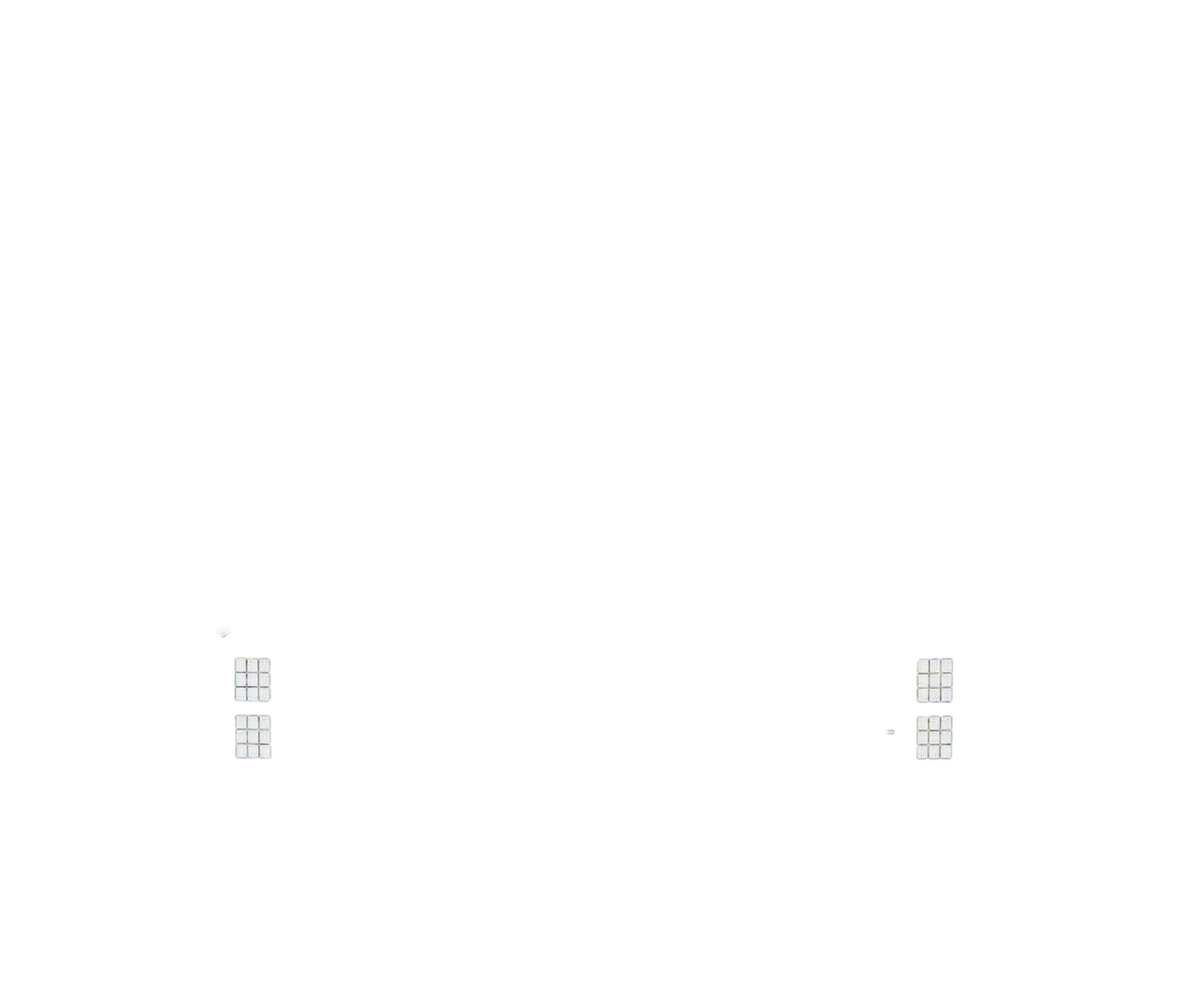

L3Nine-grid lamps. Front bumper, both sides.

Also fitted: LED daytime running lights, LED front fog lamps, LED tail lamps, automatic headlamps with a follow-me-home delay.

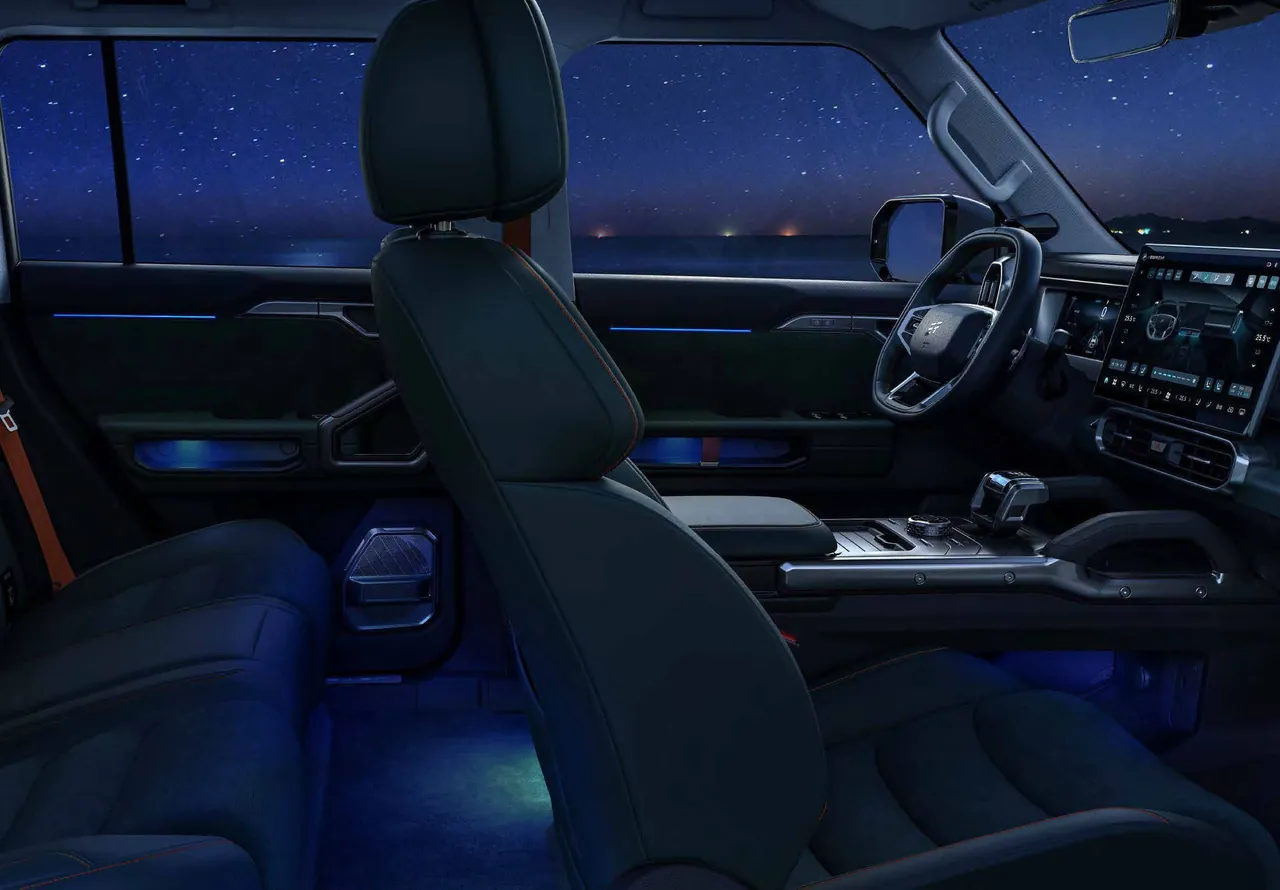

T2 cabin at night, starry sky through the windows, footwells and door pockets lit

Sixty-four colours. Choose tonight's.

The cabin's ambient light runs through 64 colours from the cockpit settings. Turn the ring to try them on the photograph; the stars stay as they were.

Colour 40 of 64Colours shown are indicative.

A 15.6-inch screen, and a Snapdragon behind it.

The centre screen runs on a Qualcomm Snapdragon 8155, next to a 10.25-inch digital cluster. For 2027 the climate controls get real buttons, and phones charge without a cable.

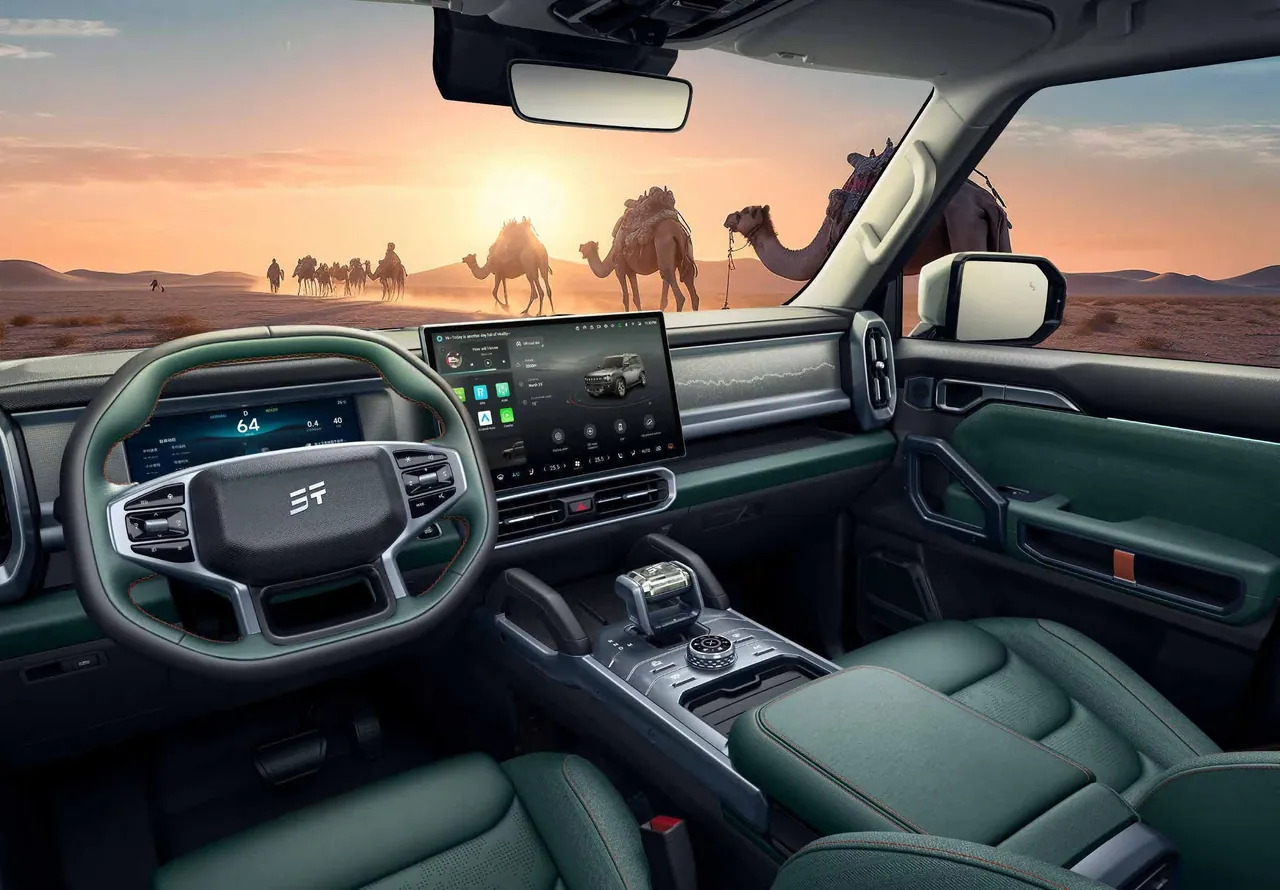

T2 dashboard in green leather, desert and camels through the windscreen
  1. 115.6-inch touchscreen
  2. 210.25-inch digital cluster
  3. 3Multi-function wheel
  4. 4Electronic gear selector
  5. 5Front seats

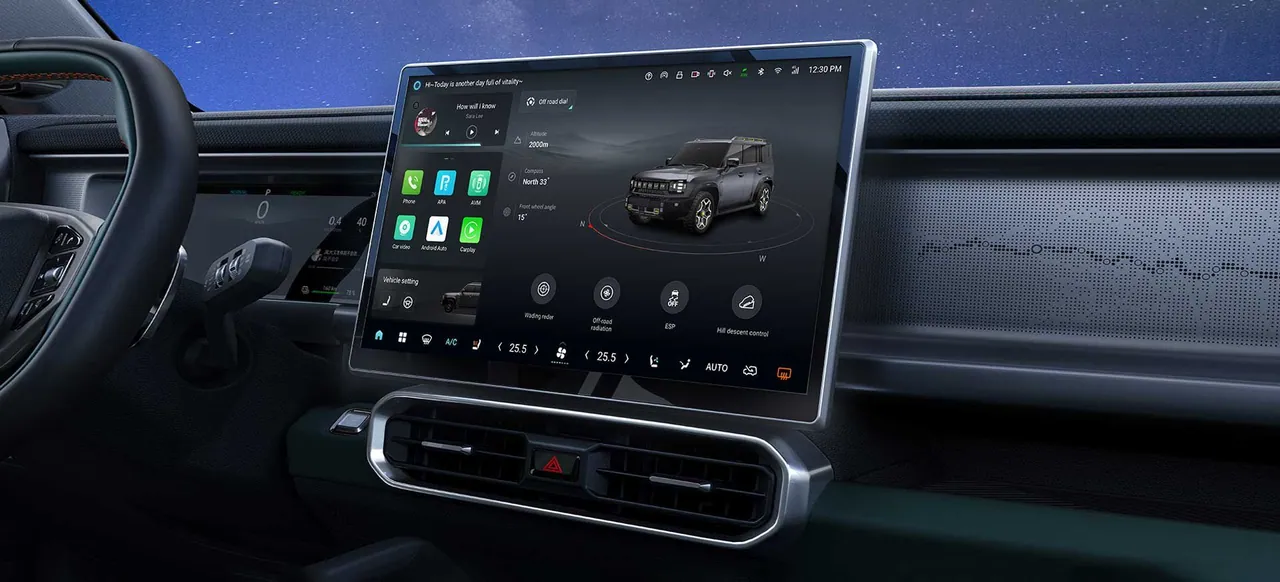

The 15.6-inch touchscreen showing apps and the car
Detail 1 From callout 1. One screen for settings, navigation and media.

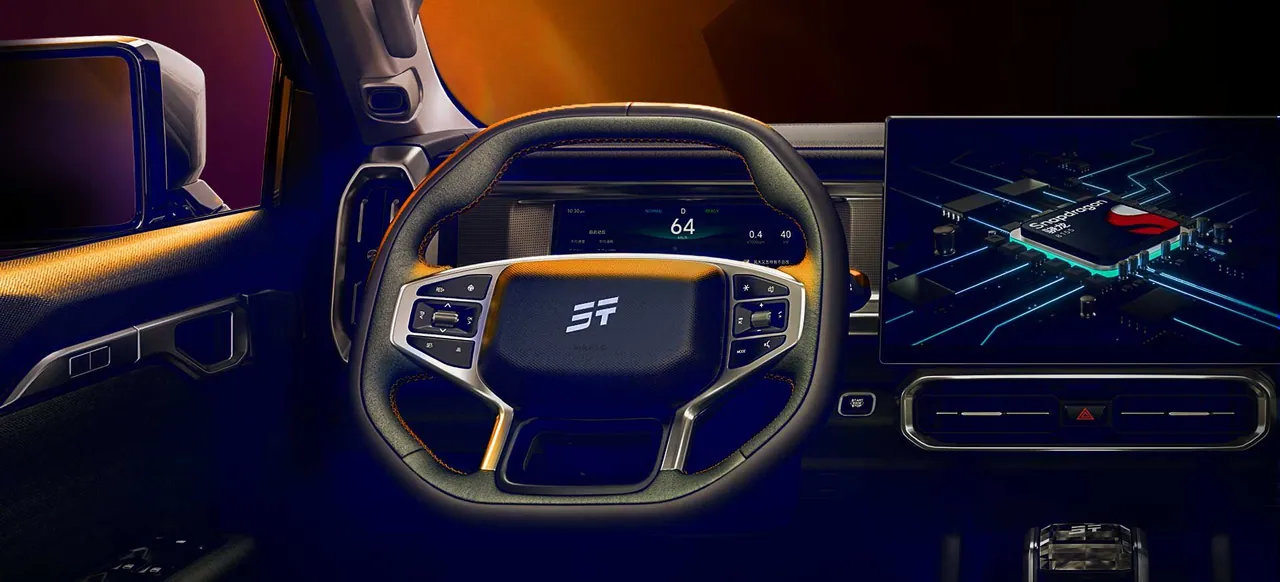

Steering wheel, digital cluster and centre screen lit at night
Detail 2 From callout 2. Cluster and screen after dark.

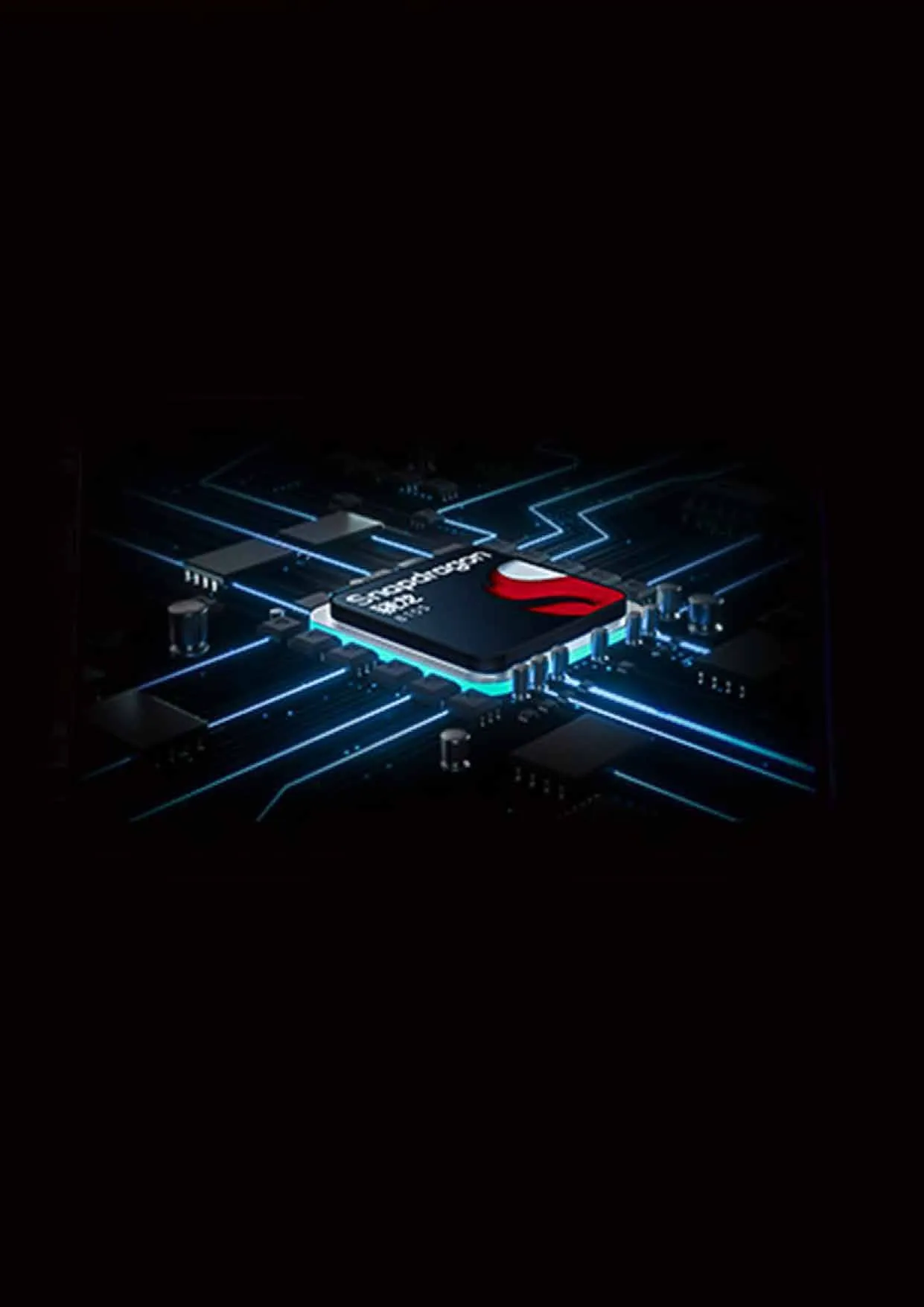

Render of the Snapdragon 8155 chip lit in blue and red
Detail 3 Behind callout 1. Qualcomm Snapdragon 8155.

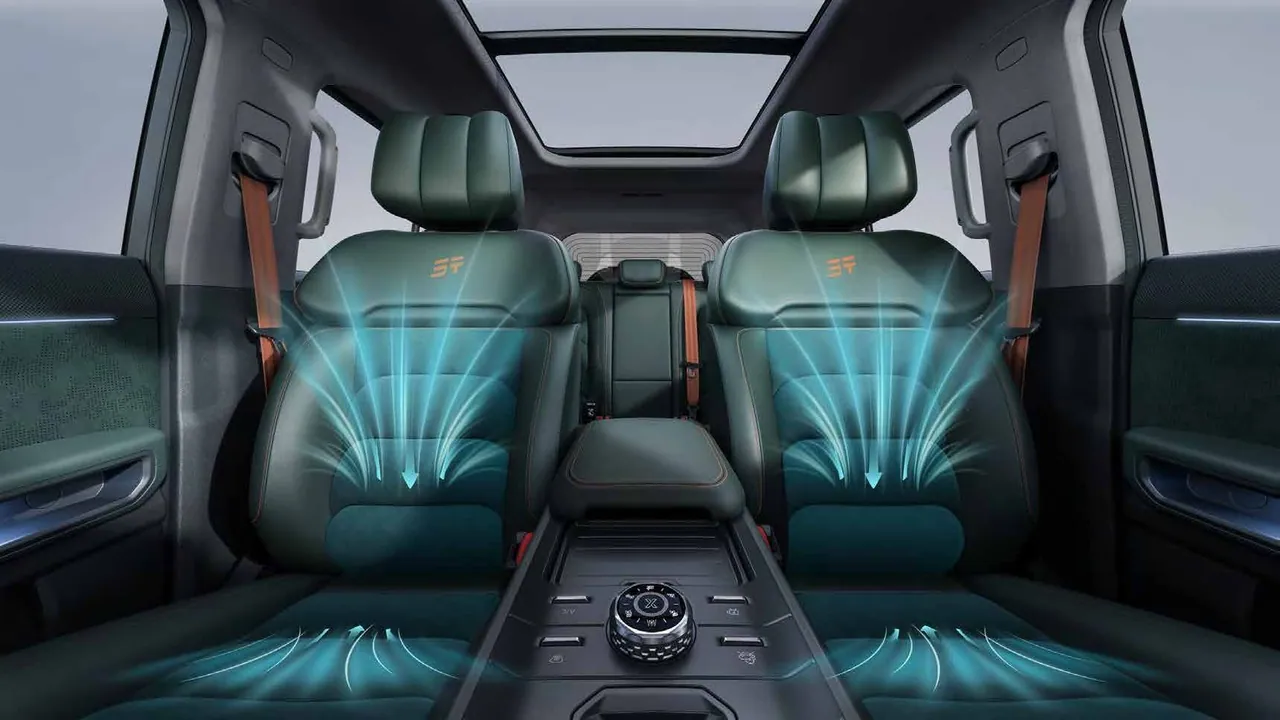

Green front seats with cool air drawn flowing through them
Detail 5 From callout 5. Front seats with ventilation, heating and massage.
Cabin schedule
ItemFeatureNoteView

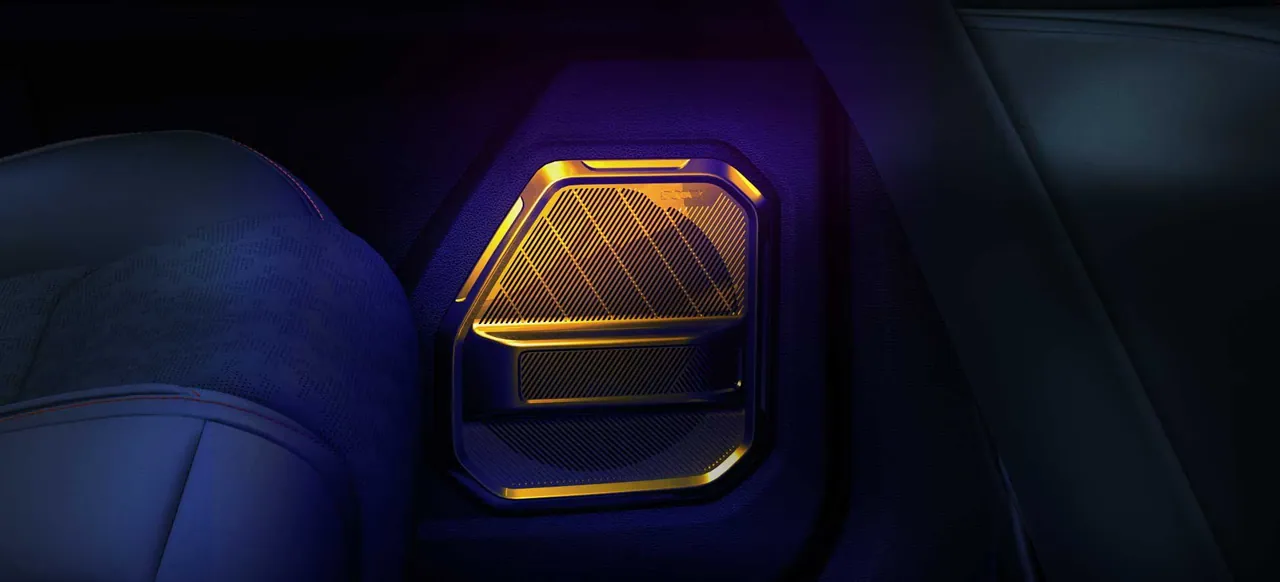

C1SONY audio12 speakers including a boot subwoofer; volume rises with road speed.Door speaker grille glowing amber

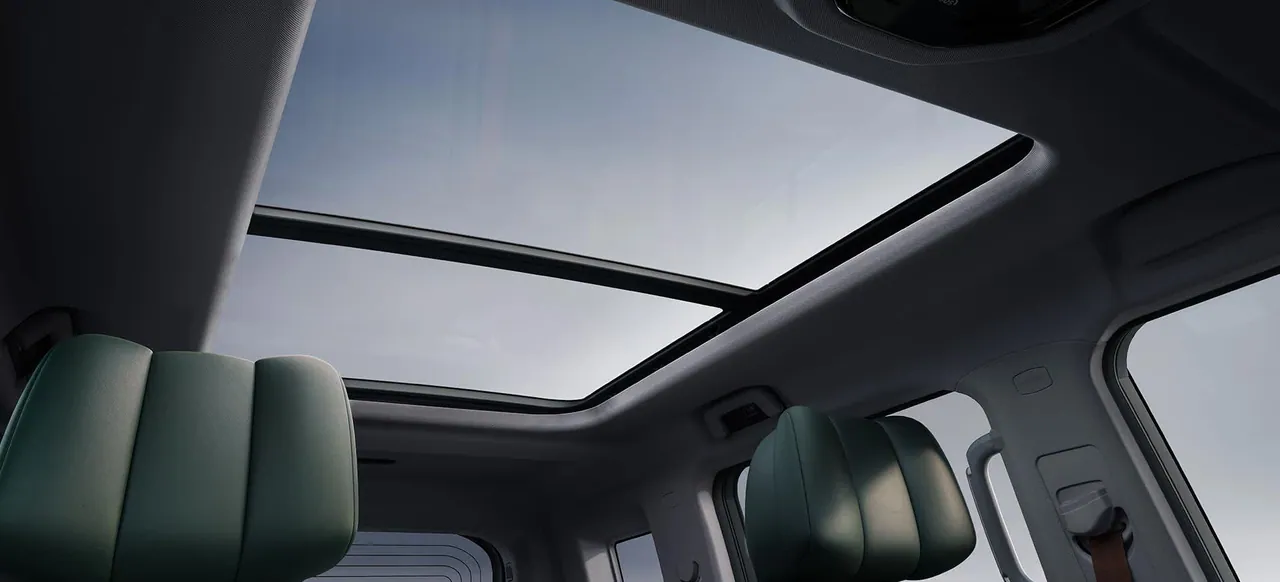

C2Panoramic sunroofRuns back over the cabin and fills it with daylight.Panoramic sunroof above the front seats
C3PhoneApple CarPlay and Android Auto, wireless charging at the front.
C4VoiceVoice control from the front and rear seats.
C5ClimateDual-zone automatic with rear vents, PM2.5 filter and air purifier.
C6SeatsPower front seats with memory; the rear bench reclines.
C7AccessKeyless entry and start, picnic table in the boot.

Five stars, and eyes on every side.

The T2 holds five stars from ASEAN NCAP. A 540° camera view shows the ground under the car as well as around it, and radar keeps watch ahead and behind.

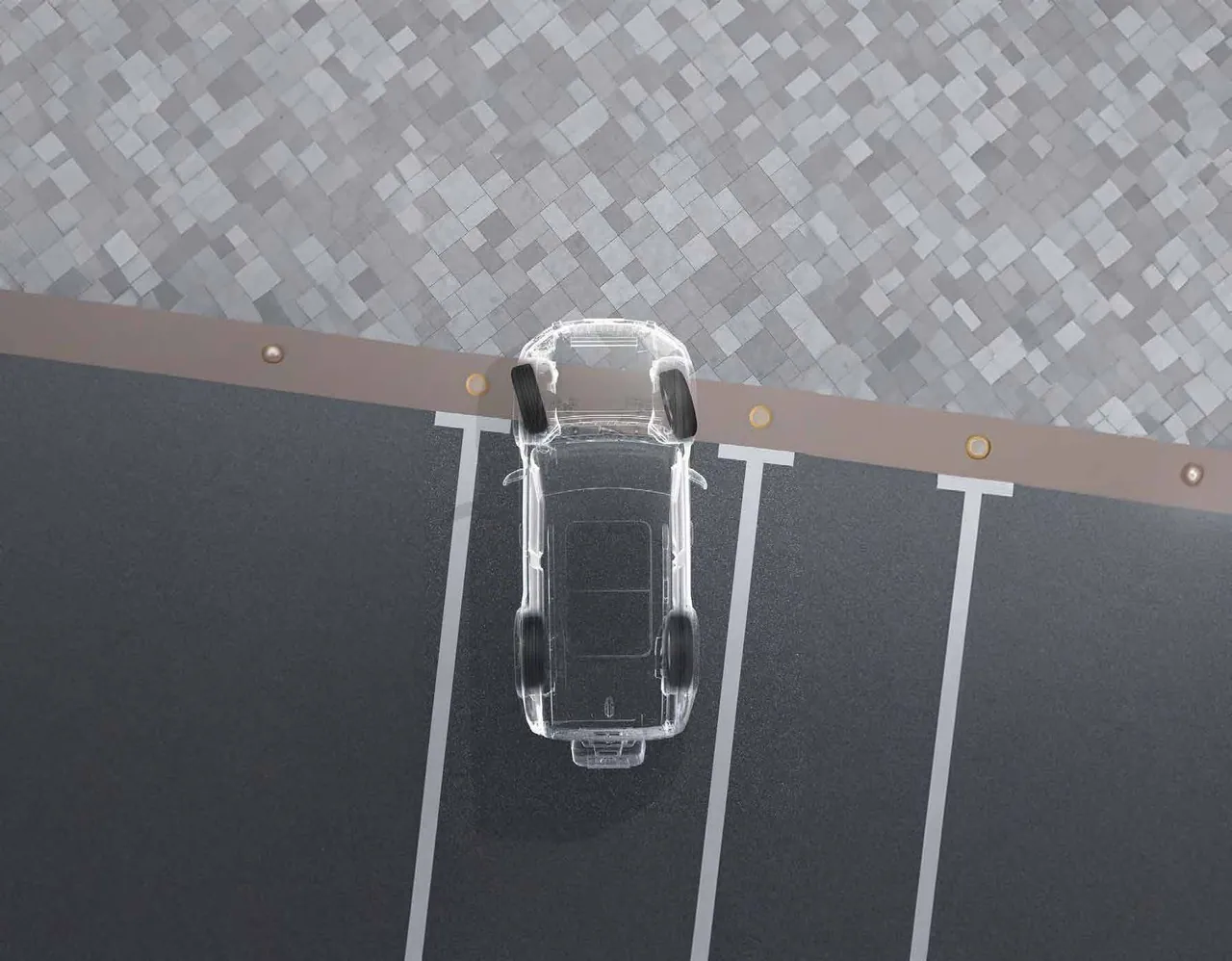

Transparent T2 seen from directly above in a parking bay
Coverage zones are indicative.

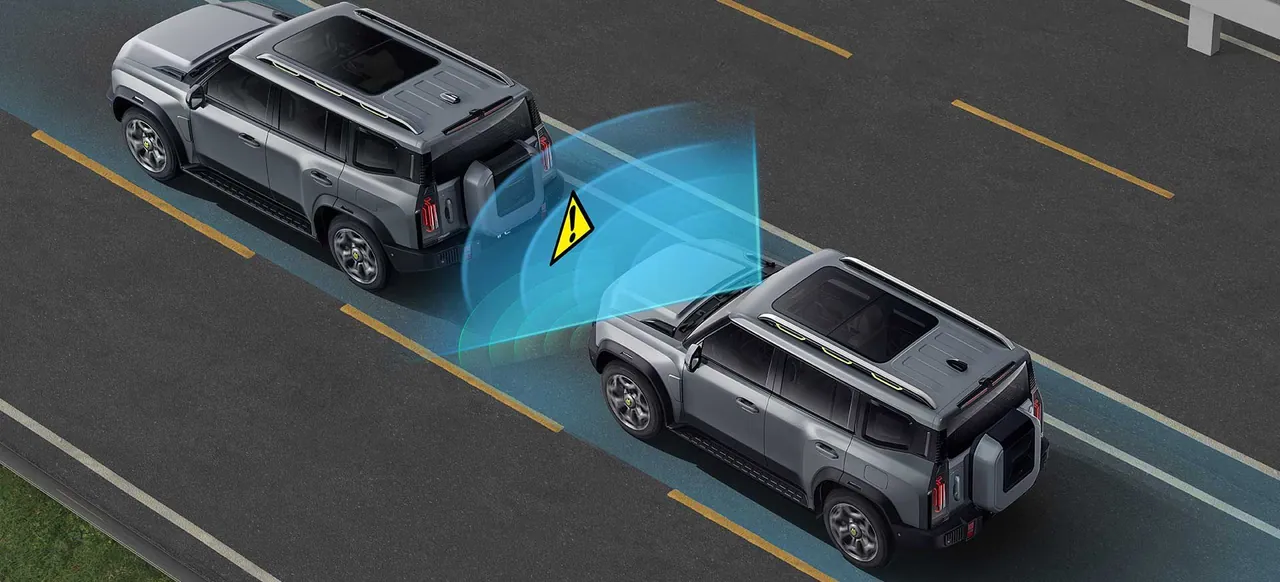

Illustration of a T2 braking automatically behind another car
Automatic emergency braking.

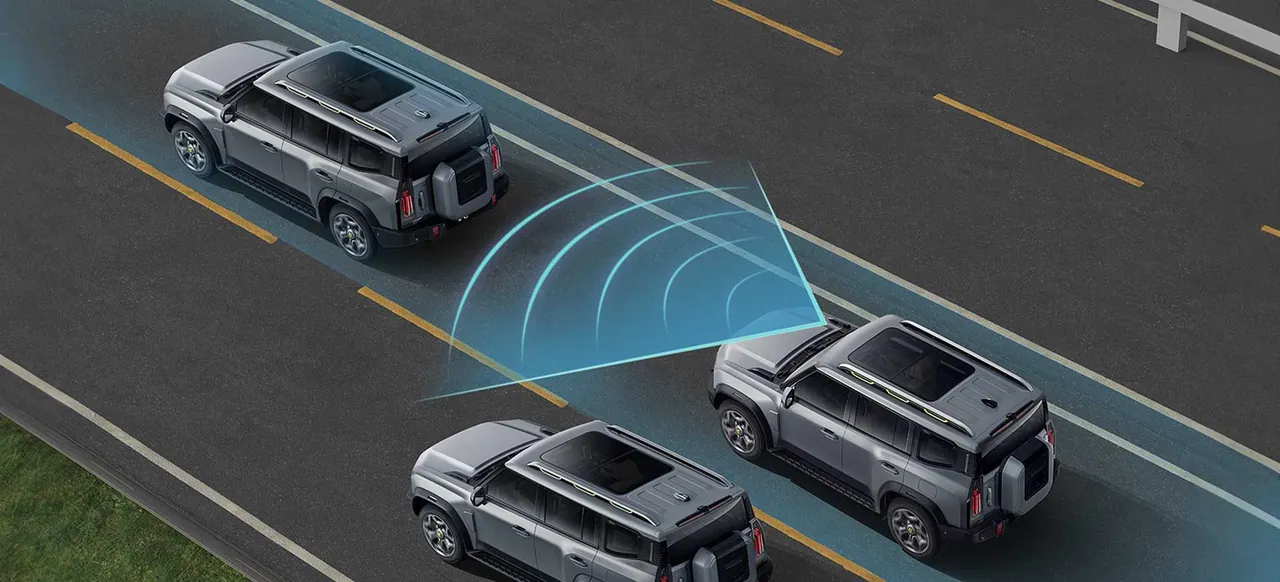

Illustration of a T2 holding its distance behind another car on the motorway
Adaptive cruise holds the gap.

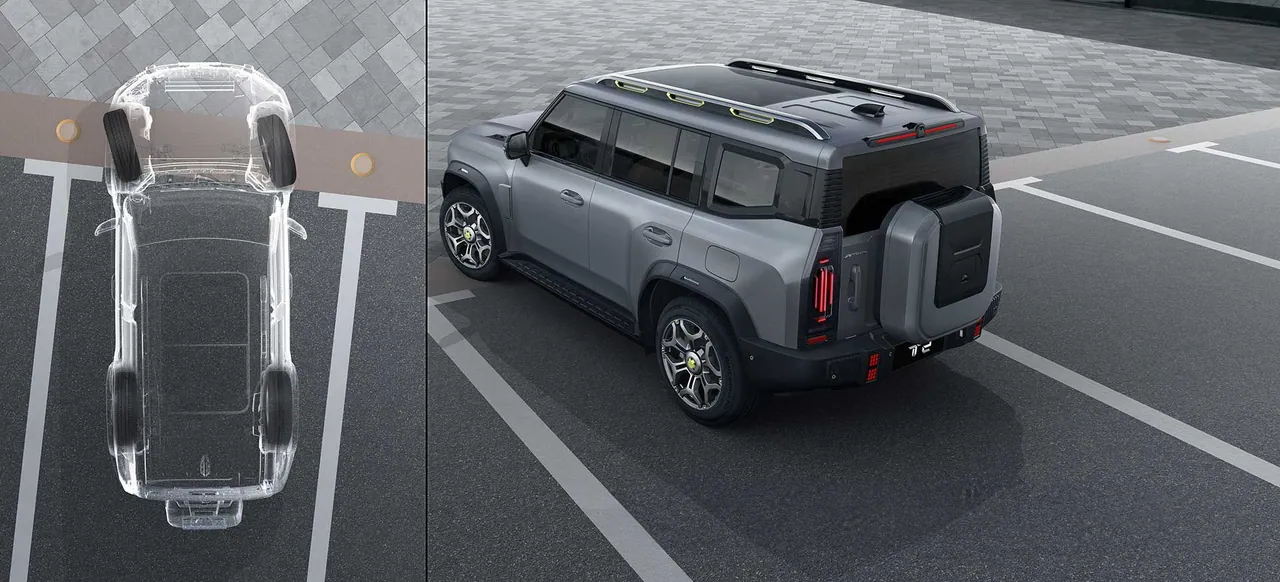

Transparent T2 seen from above beside the real car reversing into a bay
540° view, with the car drawn transparent so the ground shows through.

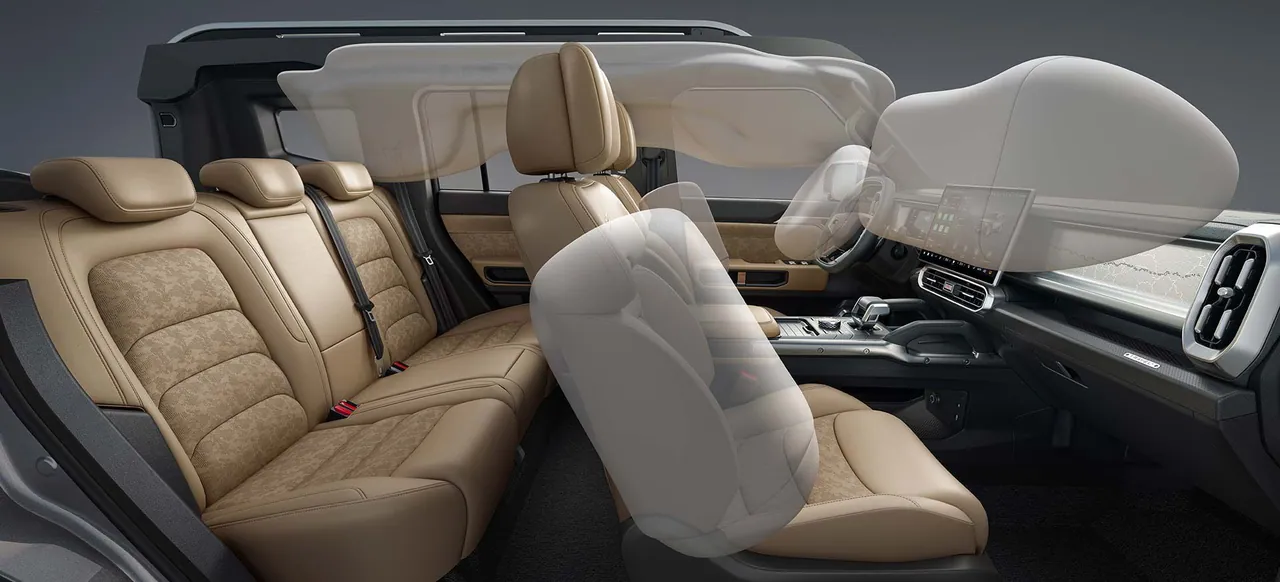

Beige cabin with front, driver's side and curtain airbags deployed
Front airbags, a driver's side airbag and curtains front and rear.

Six paints. Two cabins.

Matte Grey is the one in the drawings. The other five are below, with beige or green inside. Whatever you settle on comes with you to the test drive.

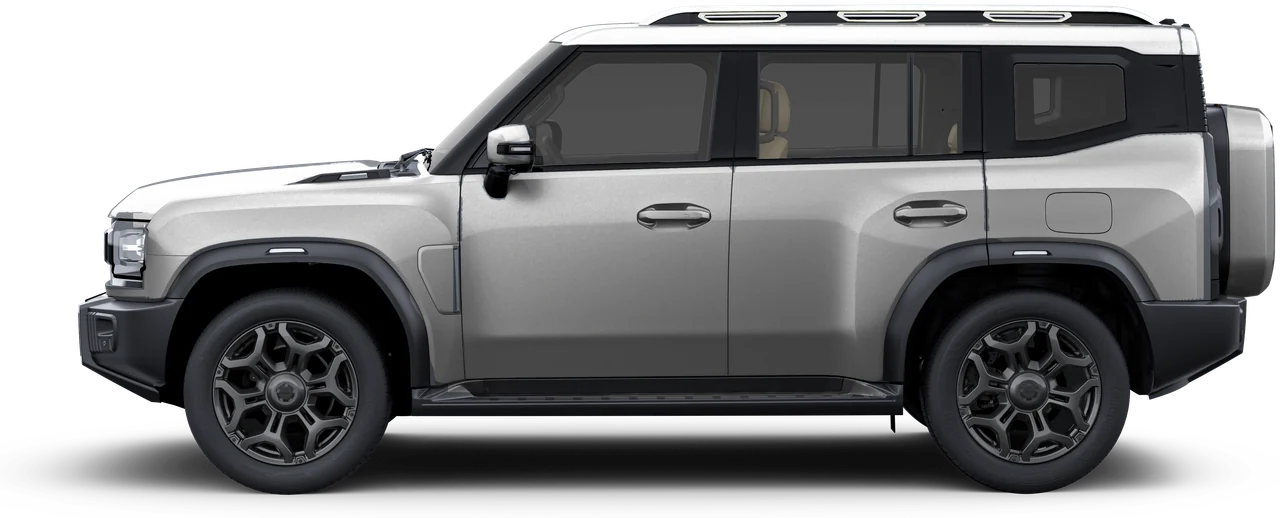

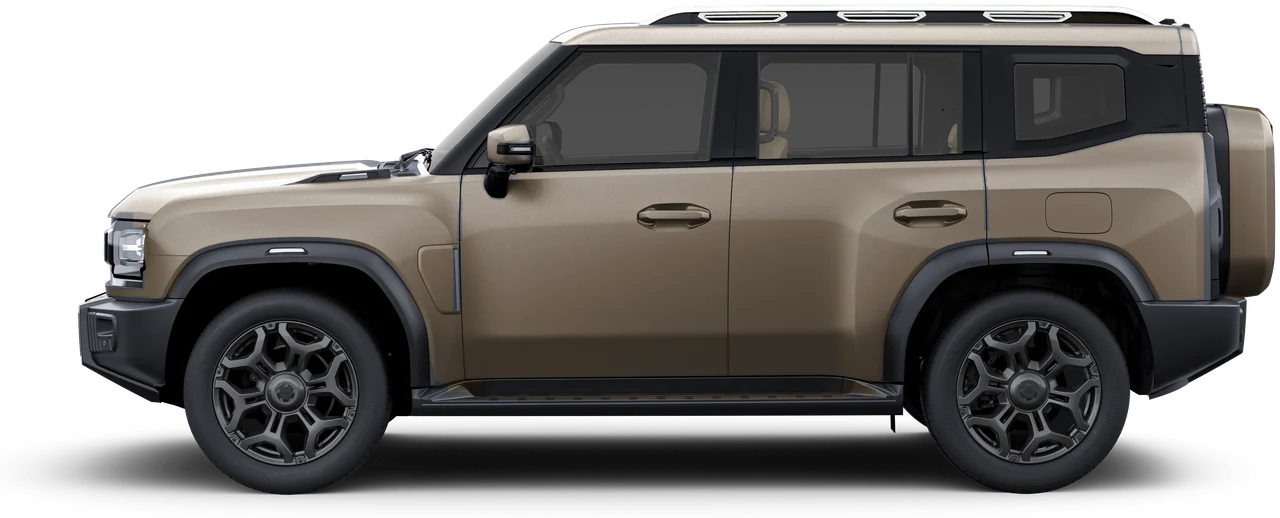

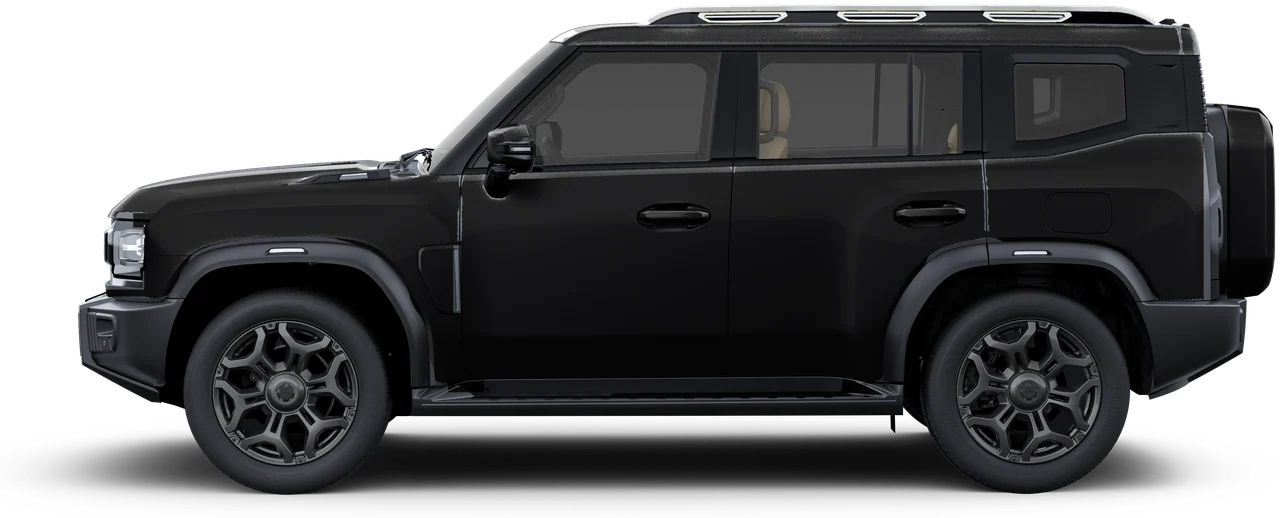

T2 in Matte Grey, side elevation T2 in Silver Snow, side elevation T2 in Misty Cyan, side elevation T2 in Night Black, side elevation T2 in Sand, side elevation T2 in White, side elevation
P1 Matte Grey

Each paint laid onto Jetour's own studio render from its swatch, so the six compare like for like. See a showroom for the real finish.

Paint

Interior

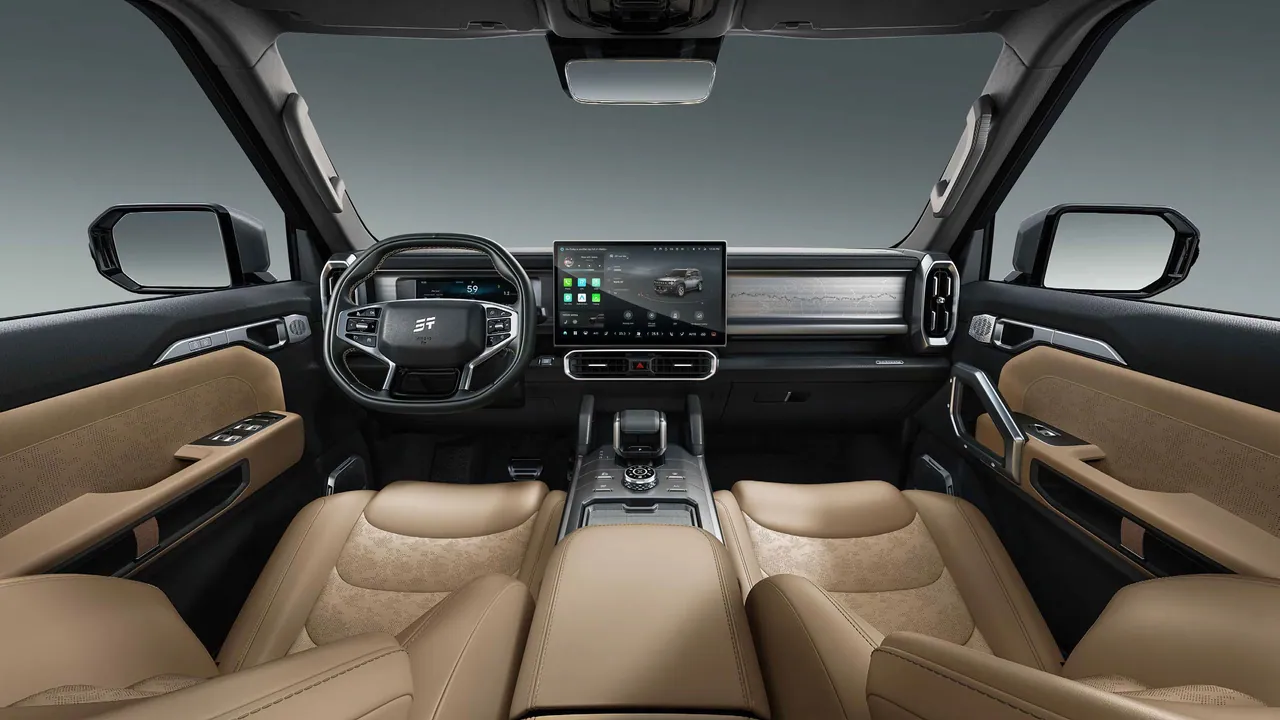

Green leather T2 cabin, forest through the windscreen Beige leather T2 cabin seen from the rear seats

The full sheet.

Official brochure, PDF
km

10 years or 1,000,000 km warranty, and a 3 year or 30,000 km service contract, whichever comes first. Terms apply.

Engine
Type2.0 turbo, inline four, direct injection
Displacement1,998 cc
Peak power187 kW at 5,500 rpm
Peak torque390 Nm at 1,750 to 4,000 rpm
FuelPetrol, 95 octane
EmissionsEuro 6b
Drive
Gearbox8-speed automatic
Four-wheel driveOn-demand, BorgWarner
Rear differentialElectronic limited-slip
Drive modesEco, Normal, Sport, Snow, Mud, Sand, Rock
Off-road aidsCrawl Control, hill descent, hill start
Top speed180 km/h
Dimensions
Length4,785 mm (4,612 without spare cover)
Width2,006 mm
Height1,880 mm
Wheelbase2,800 mm
Track, front and rear1,685 and 1,695 mm
Ground clearance220 mm
Approach, ramp, departure28°, 18°, 30°
Capacities
Seats5
Boot580 L
Fuel tank70 L
Kerb weight1,922 kg
Gross weight2,297 kg
Chassis
SuspensionMacPherson front, multi-link rear
SteeringElectric power assisted
BrakesVentilated discs front, discs rear
Parking brakeElectronic, with auto hold

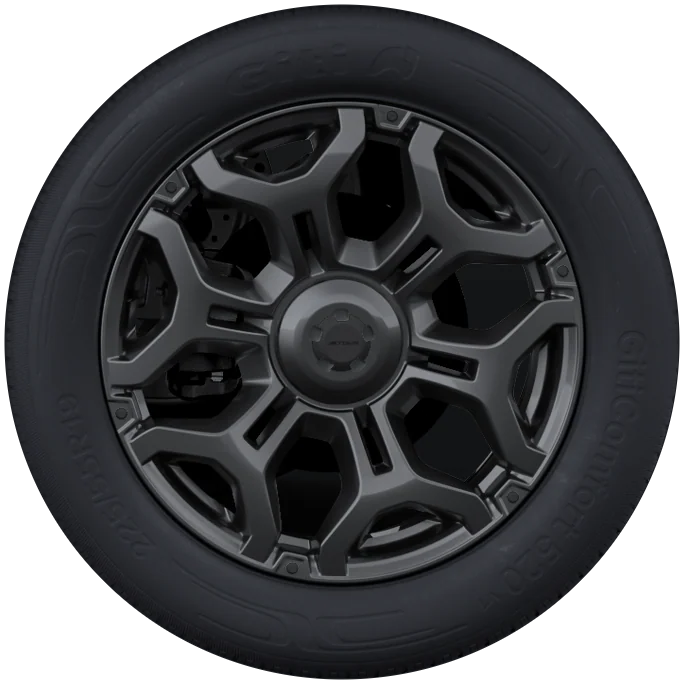

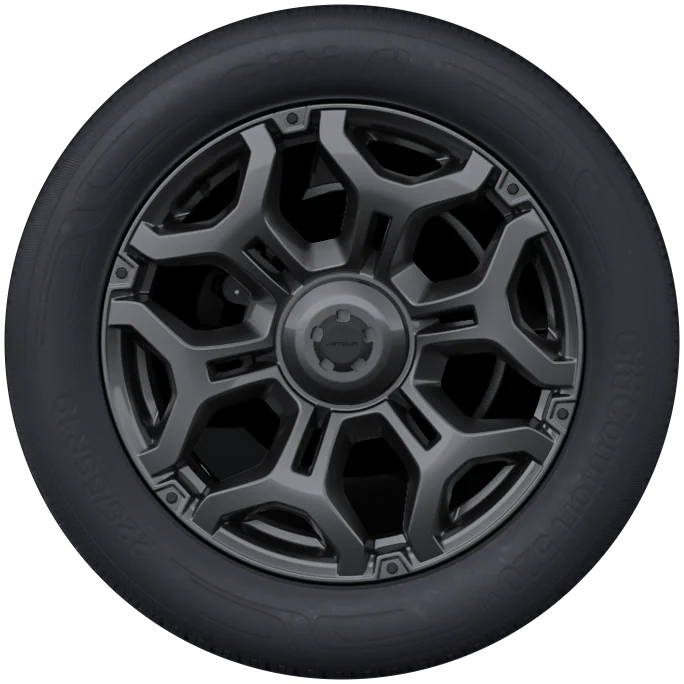

Tyres255/55 R20
Cabin and tech
Centre screen15.6-inch touchscreen
Cluster10.25-inch digital
ProcessorQualcomm Snapdragon 8155
AudioSONY, 12 speakers
Front seatsVentilated, heated, massage, memory
Ambient light64 colours
Revisions
RevModel yearChange
A2024UAE launch, 27 January, the T2's first market outside China
B2026Eight-speed automatic replaces the seven-speed dual clutch
C2027Physical climate controls; this drawing set

Drive it before you decide.

Pick a showroom, a time and the paint you would like to see. It takes about a minute, and you can change it later by phone on 800 538687.

EMI from AED 1,882 a month, with 0% interest for 3 years or VAT paid. Terms apply.
